| Magnification |
8 × |
| Effective lens diameter |
32 mm |
| Light transmission |
88% |
| Exit pupil diameter |
4.0 mm |
| Twilight factor |
16.0 |
| Field of view at 1,000 m (yds) |
135 m (405 ft) |
| Subjective viewing angle |
61° |
| Close focusing distance |
1.6 m (5.3 ft) |
| Diopter adjustment range |
− 3.0 | + 3.0 dpt |
| Exit pupil distance |
16.5 mm |
| Pupil distance |
56 – 74 mm |
| Lens type |
ED |
| Prism system |
Schmidt-Pechan |
| LotuTec | Nitrogen filled |
– | + |
| Water resistance |
100 mbar |
| Operating temperature |
− 15°C | + 60°C (+ 5°F | + 140°F) |
| Length |
125 mm (4.9 “) |
| Width at an interpupillary distance of 65 mm |
117 mm (4.6 “) |
| Weight |
510 g (18.0 oz) |

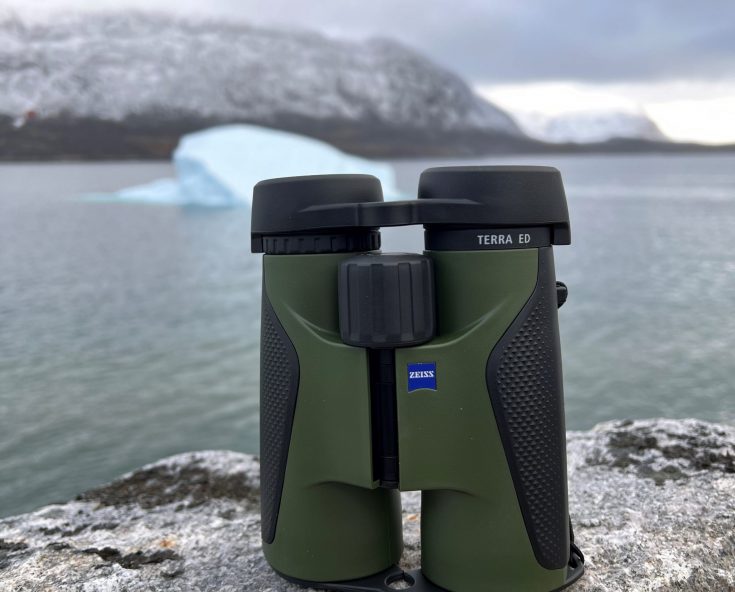

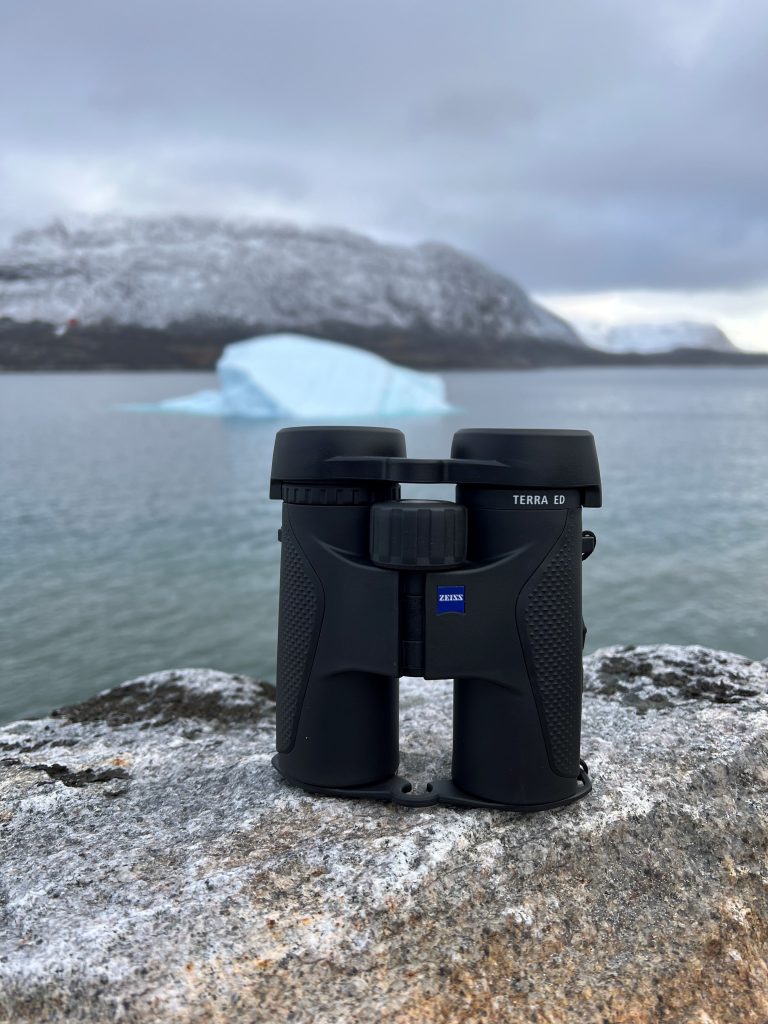

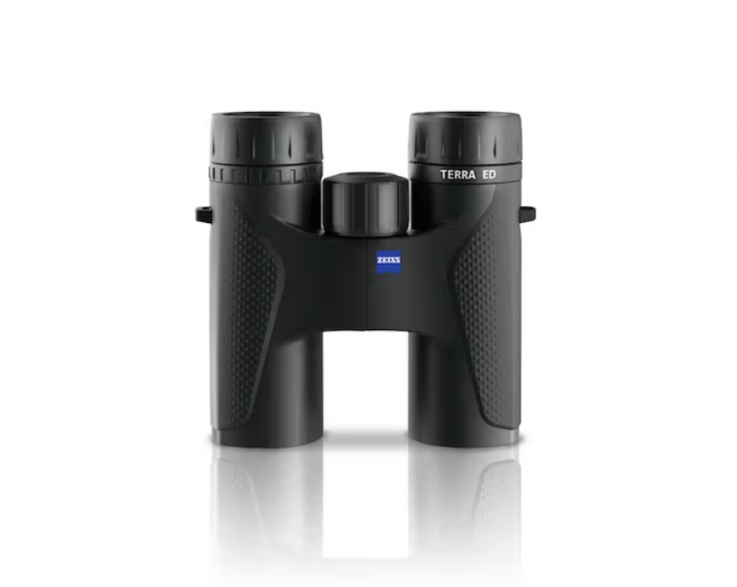

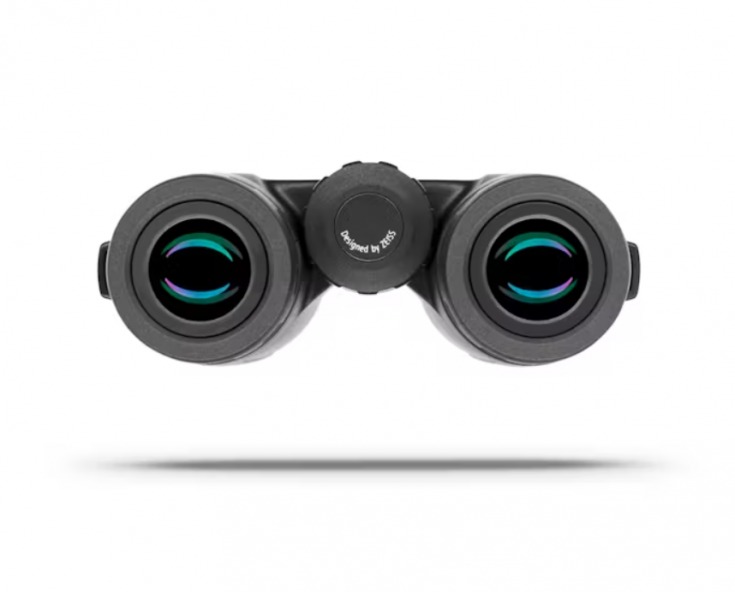

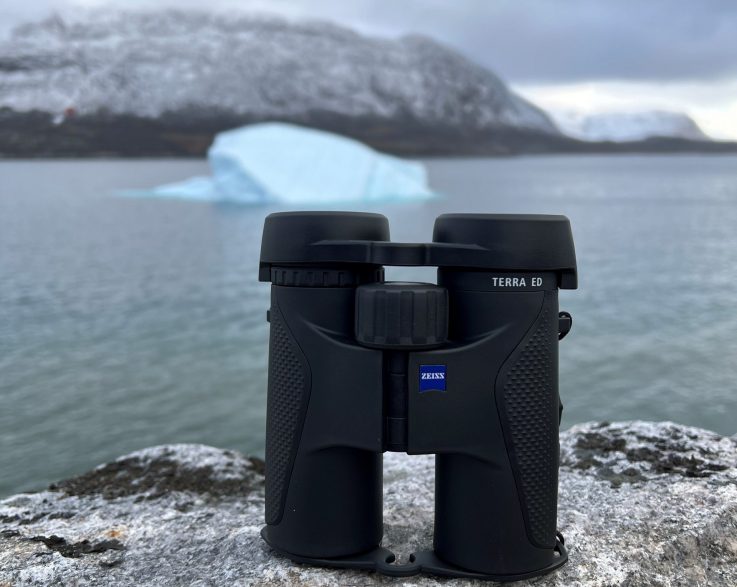

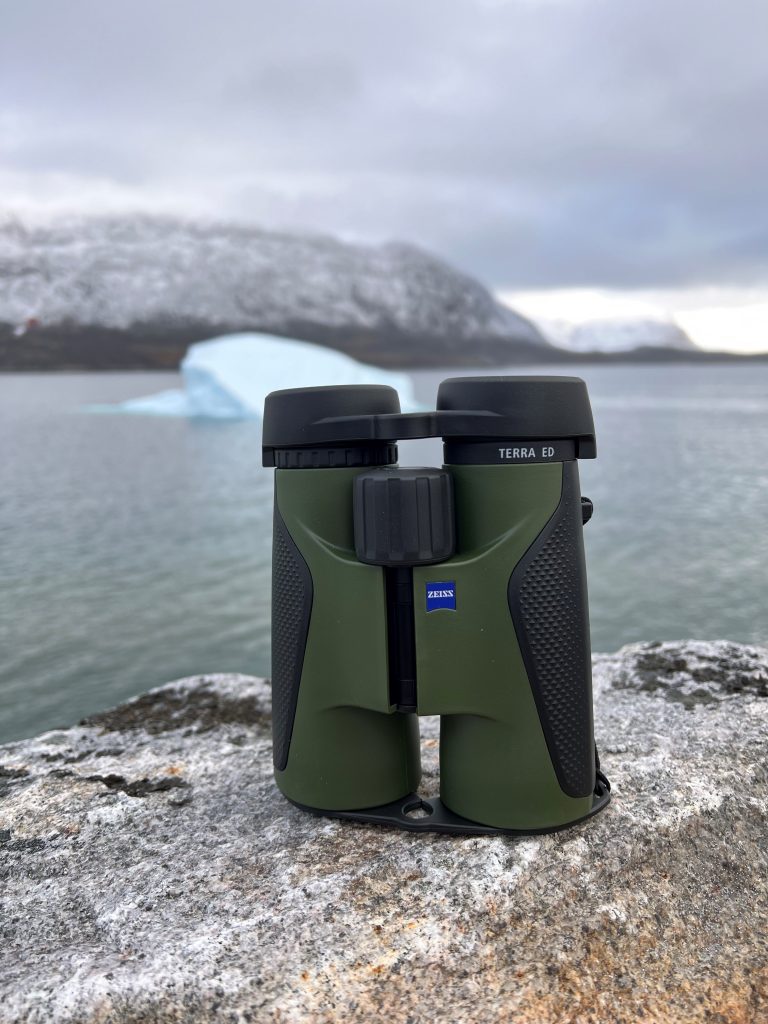

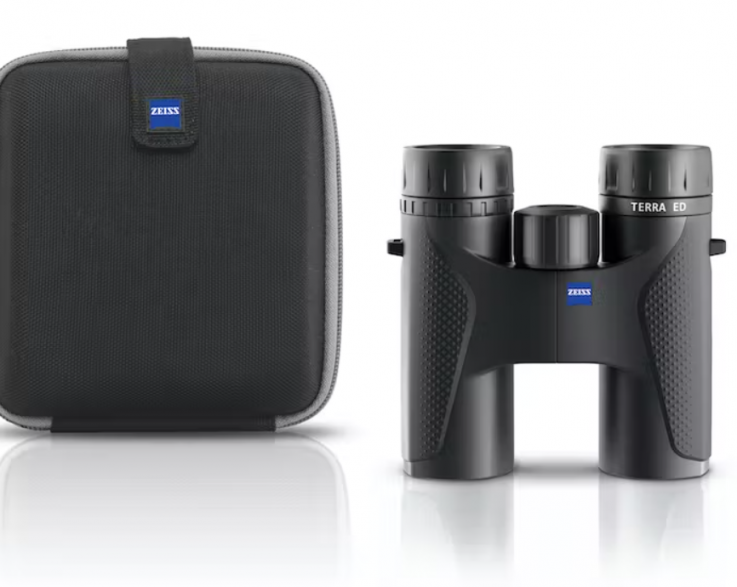

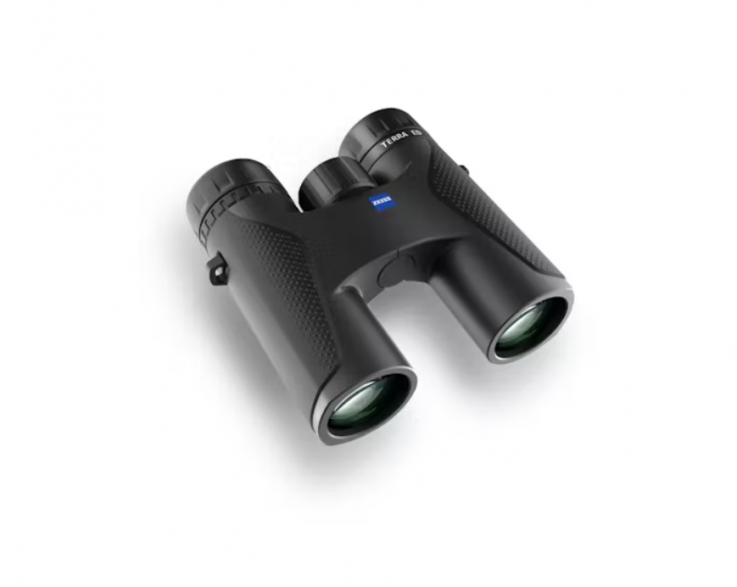

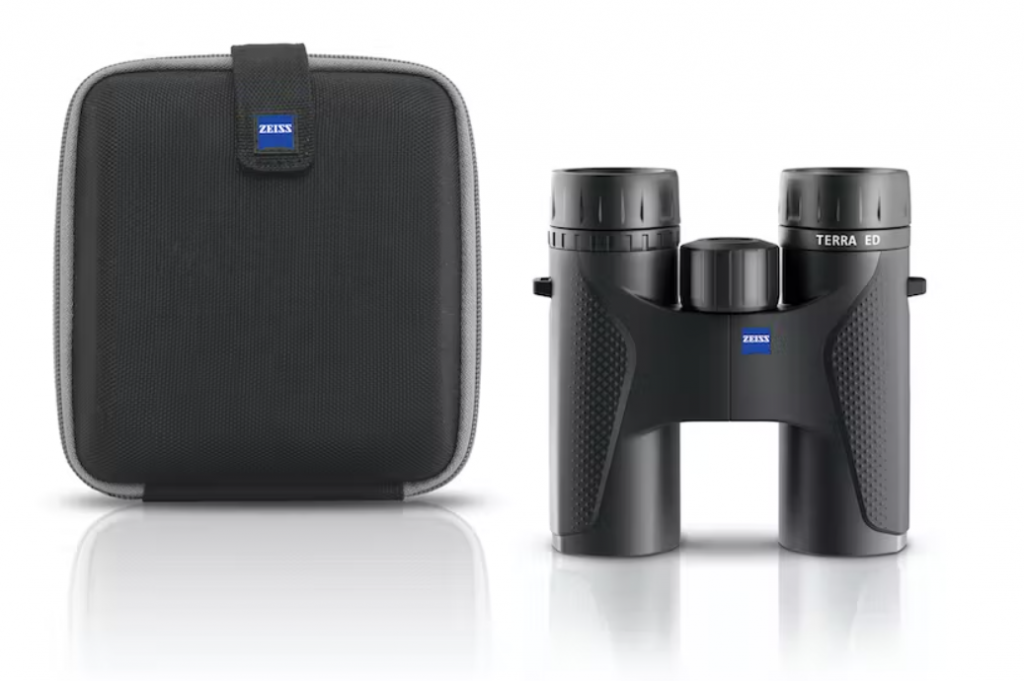

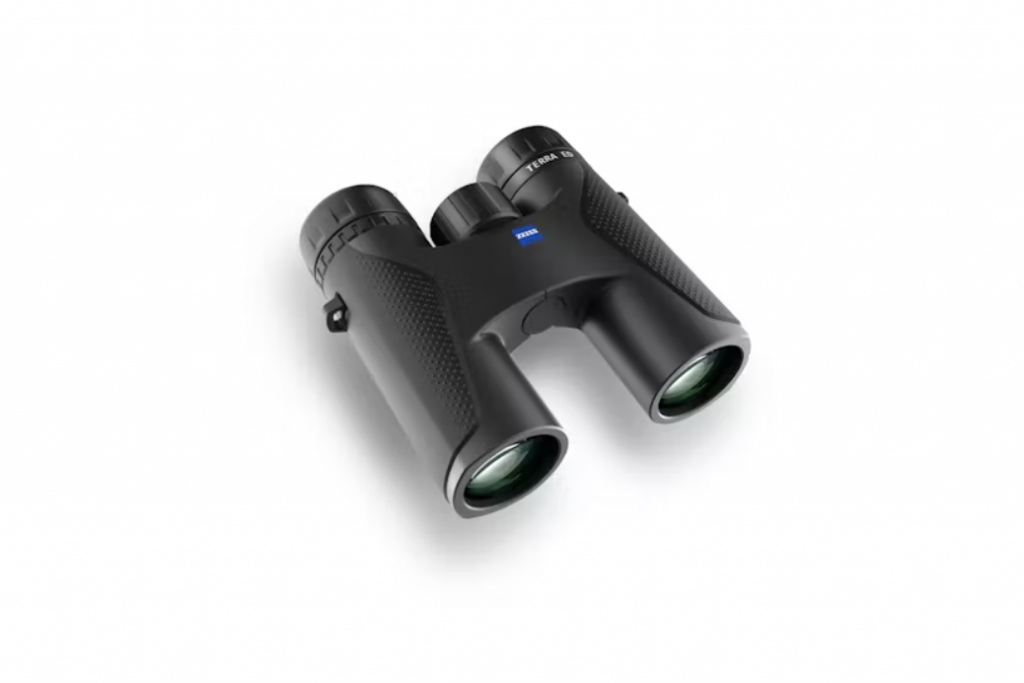

Zeiss Terra ED 10×32
Pris 3.599,00 Kr
| Magnification |
10 × |
| Effective lens diameter |
42 mm |
| Light transmission |
88% |
| Exit pupil diameter |
4.2 mm |
| Twilight factor |
20.5 |
| Field of view at 1,000 m (yds) |
110 m (330 ft) |
| Subjective viewing angle |
60° |
| Close focusing distance |
1.6 m (5.3 ft) |
| Diopter adjustment range |
− 3.0 | + 3.0 dpt |
| Exit pupil distance |
14 mm |
| Pupil distance |
58 – 75.5 mm |
| Lens type |
ED |
| Prism system |
Schmidt-Pechan |
| LotuTec | Nitrogen filled |
– | + |
| Water resistance |
100 mbar |
| Operating temperature |
− 15°C | + 60°C (+ 5°F | + 140°F) |
| Length |
142 mm (5.6 “) |
| Width at an interpupillary distance of 65 mm |
120 mm (4.7 “) |
| Weight |
725 g (25.6 oz) |

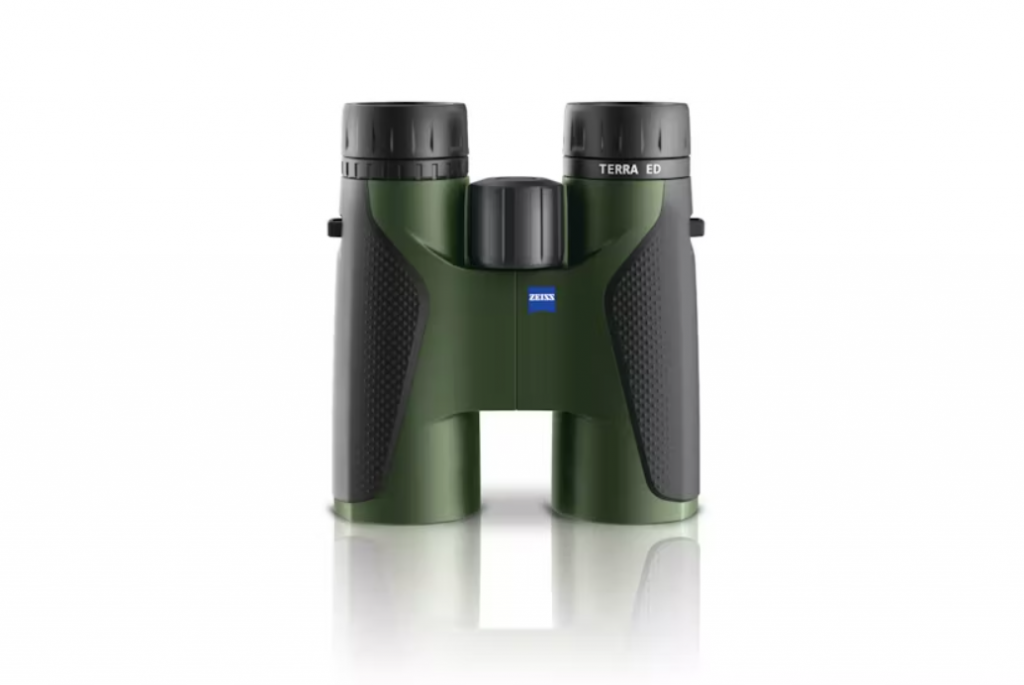

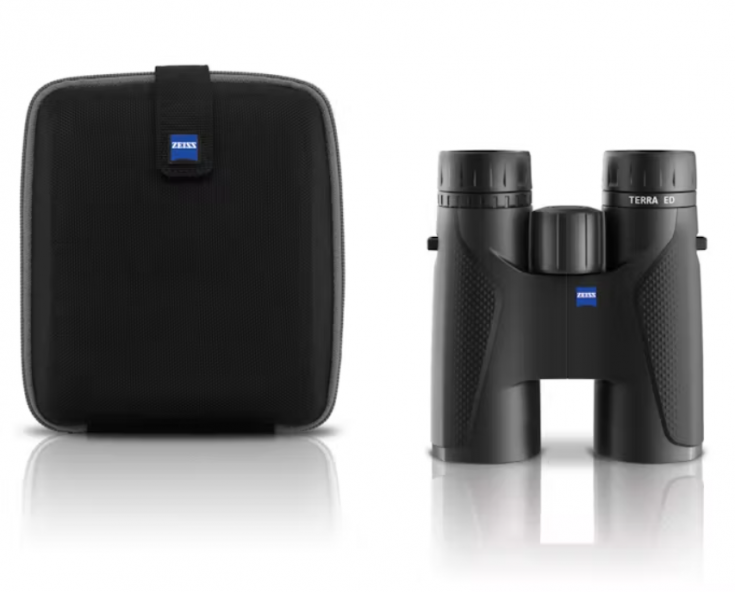

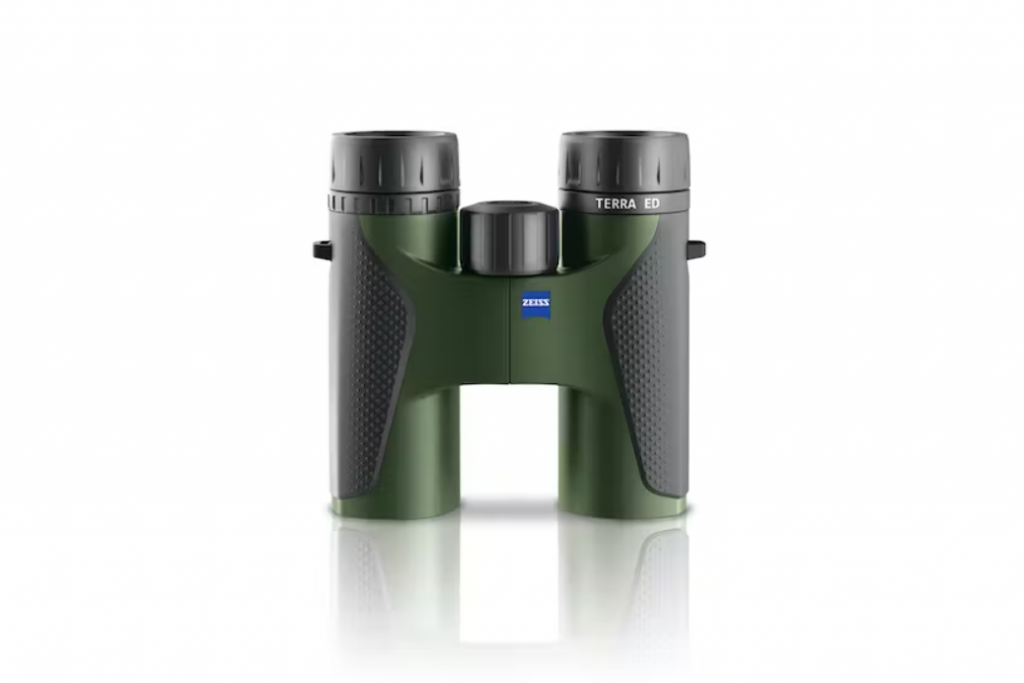

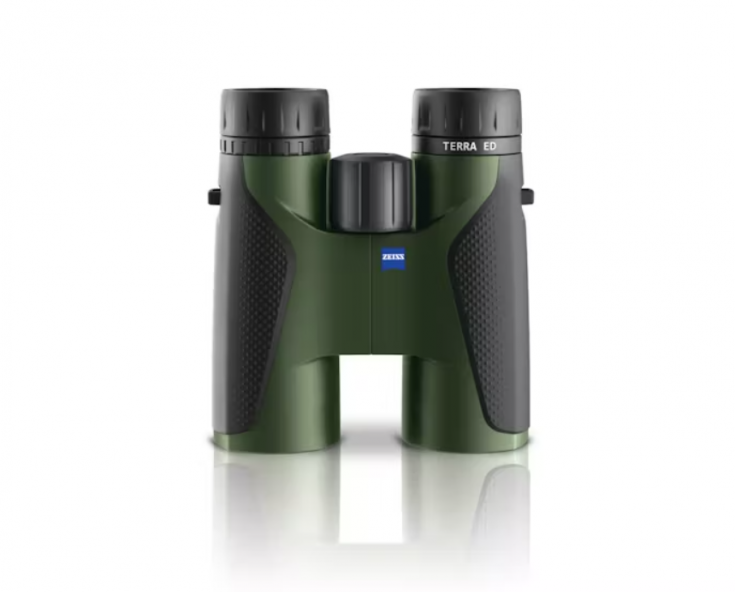

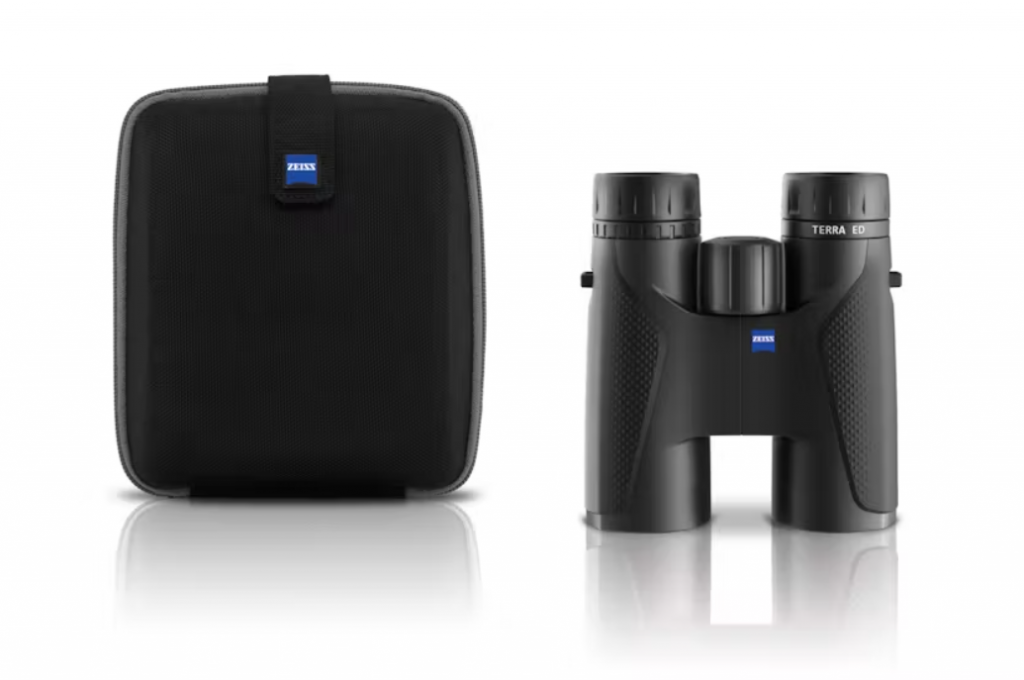

Zeiss Terra ED 10 x 42
Pris 3.999,00 Kr

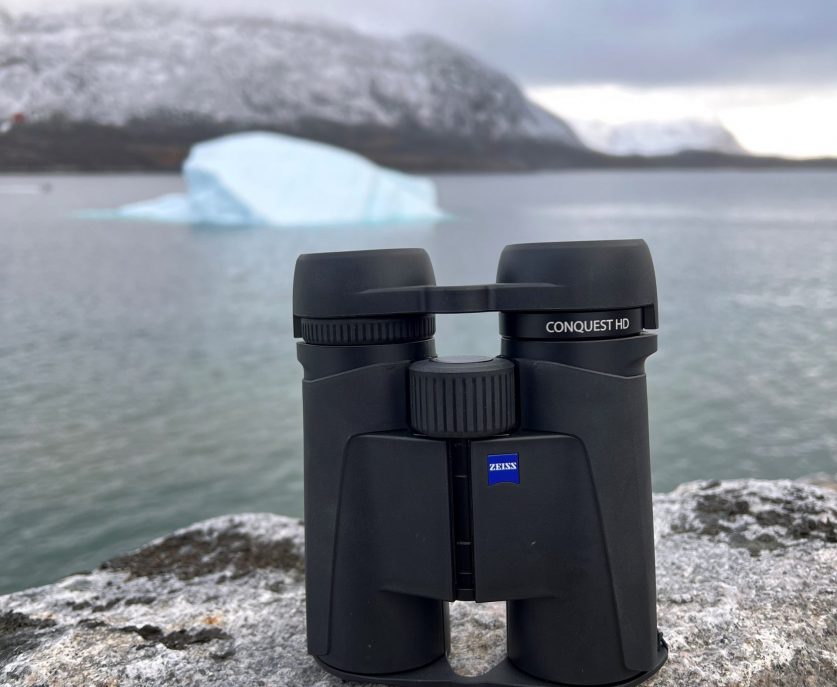

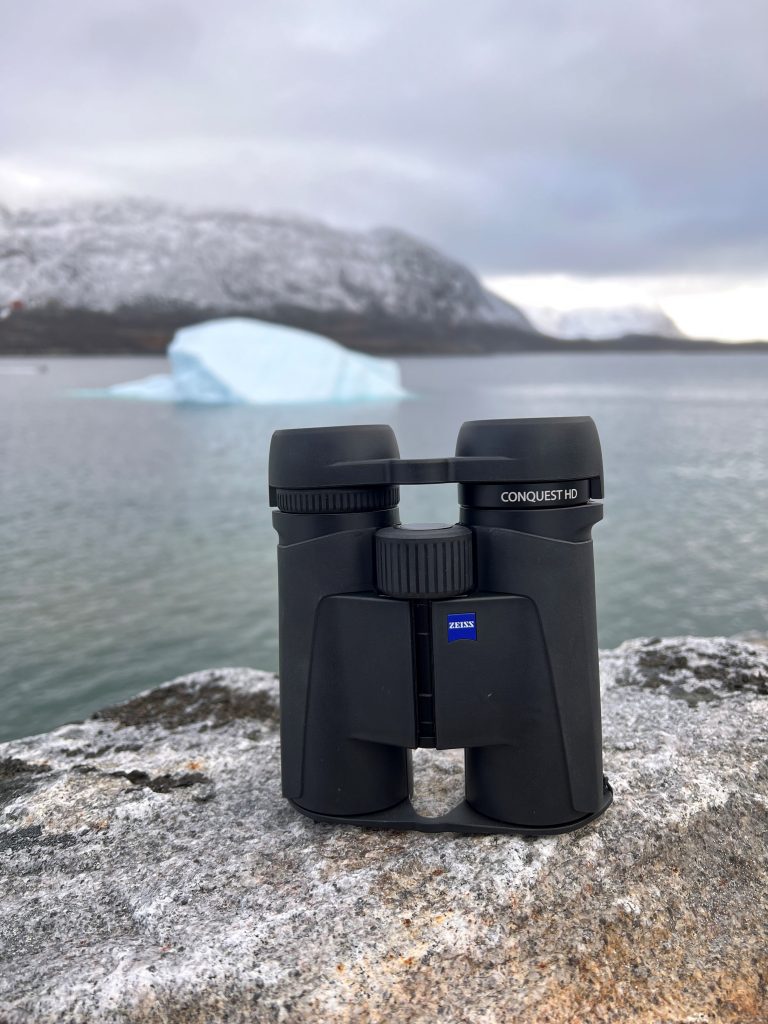

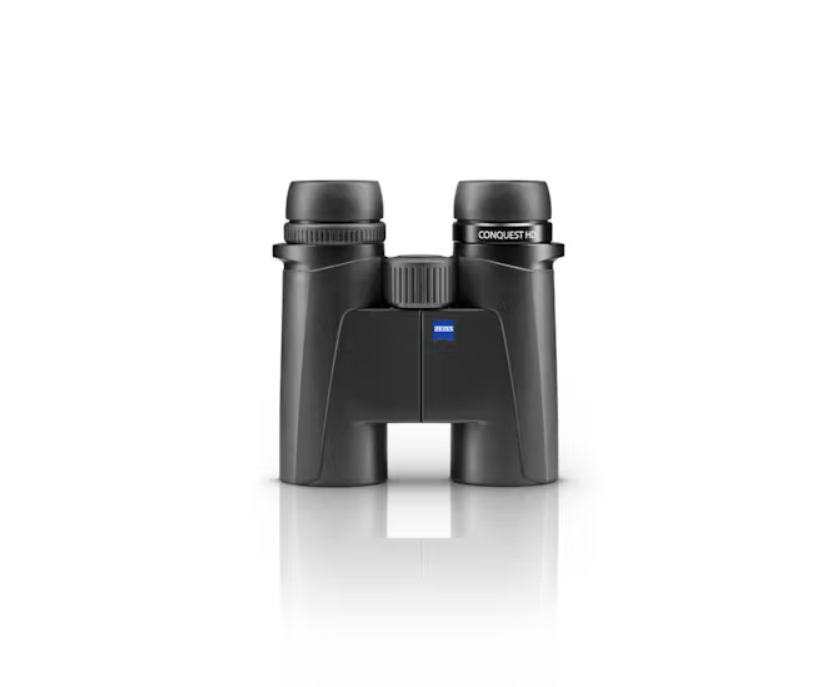

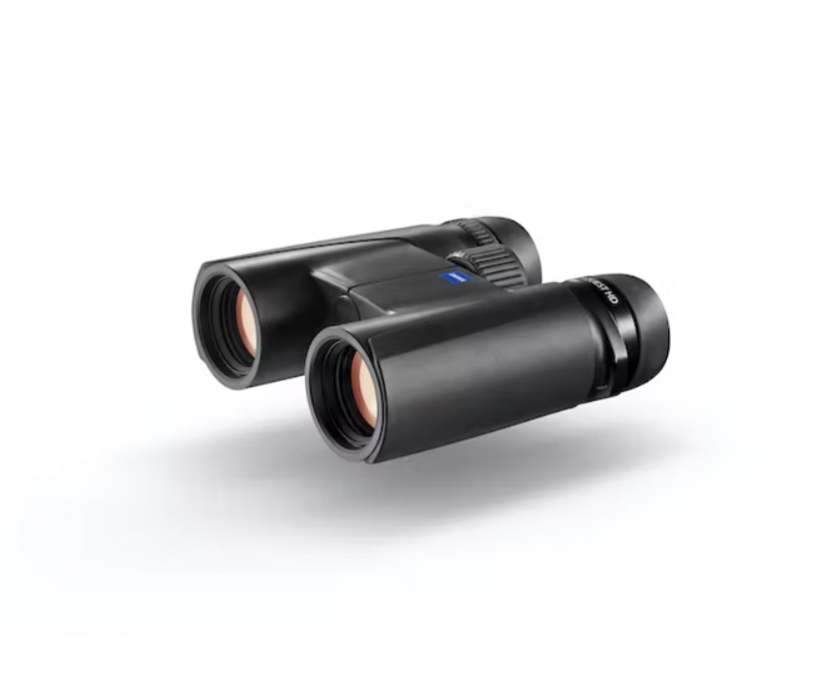

Zeiss Conquest HD 10 x 32
Performance
| Magnification |
10 × |
| Effective lens diameter |
32 mm |
| Light transmission |
90% |
| Exit pupil diameter |
3.2 mm |
| Twilight factor |
17.9 |
| Field of view at 1,000 m (yds) |
118 m (354 ft) |
| Subjective viewing angle |
68° Ww |
| Close focusing distance |
1.5 m (4.9 ft) |
| Diopter adjustment range |
− 4.0 | + 4.0 dpt |
| Exit pupil distance |
16 mm |
| Pupil distance |
54 – 74 mm |
| Lens type |
HD |
| Prism system |
Schmidt-Pechan |
| LotuTec | Nitrogen filled |
+ | + |
| Water resistance |
400 mbar |
| Operating temperature |
− 30°C | + 63°C (− 22°F | + 145°F) |
| Length |
132 mm (5.2 “) |
| Width at an interpupillary distance of 65 mm |
118 mm (4.6 “) |
| Weight |
630 g (22.2 oz) |

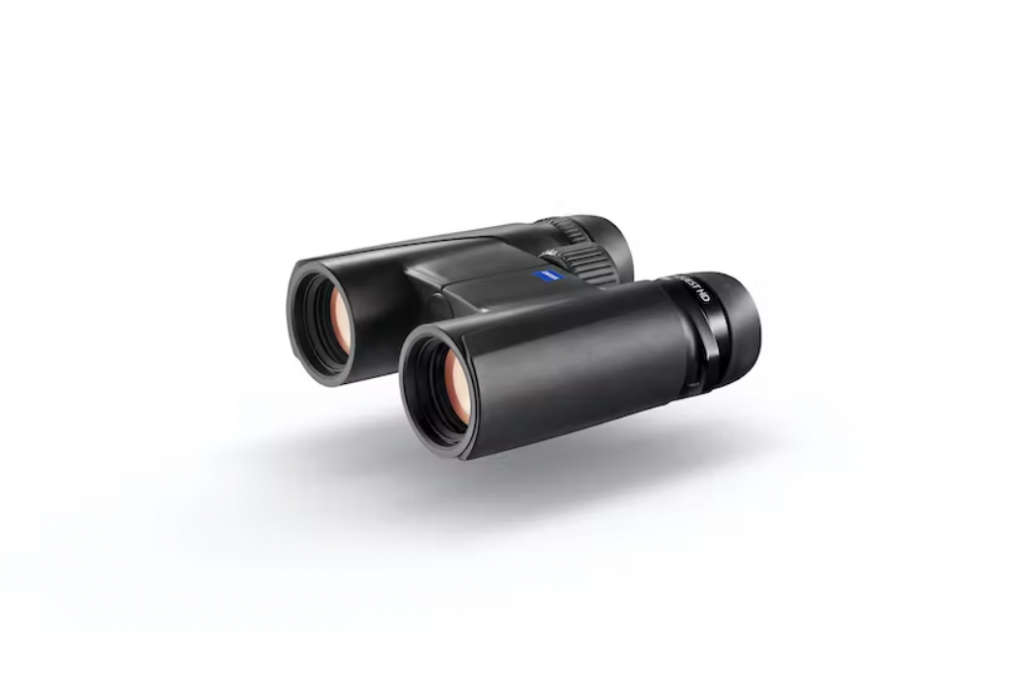

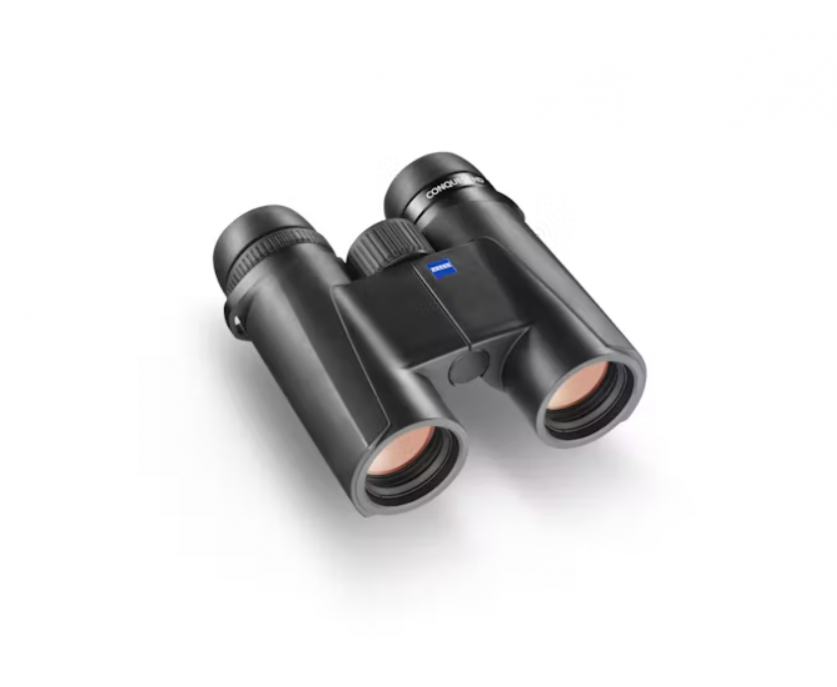

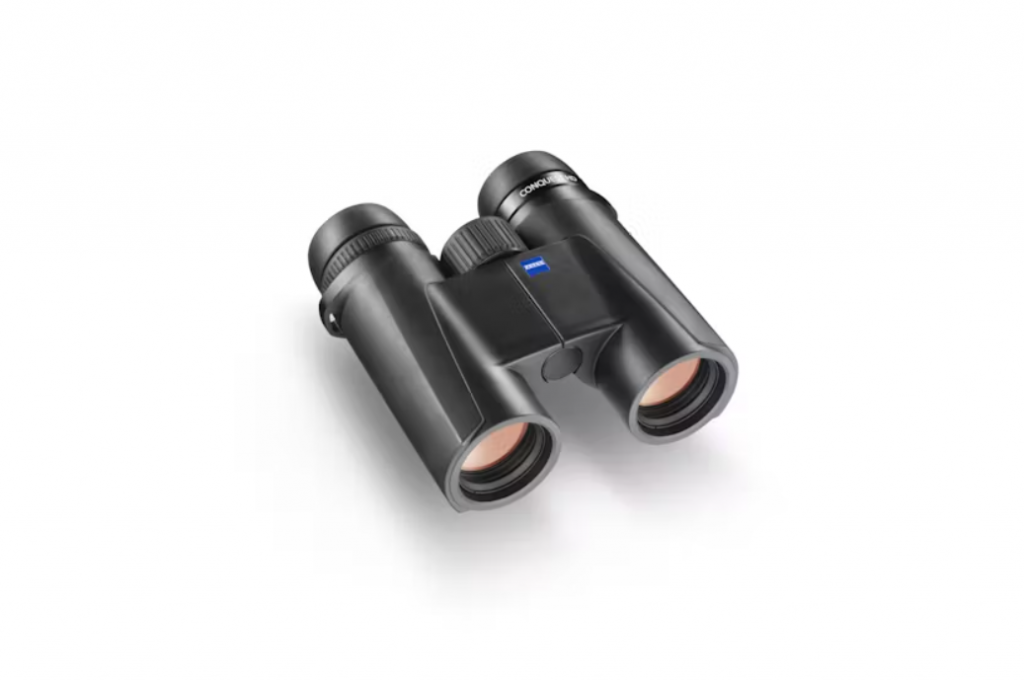

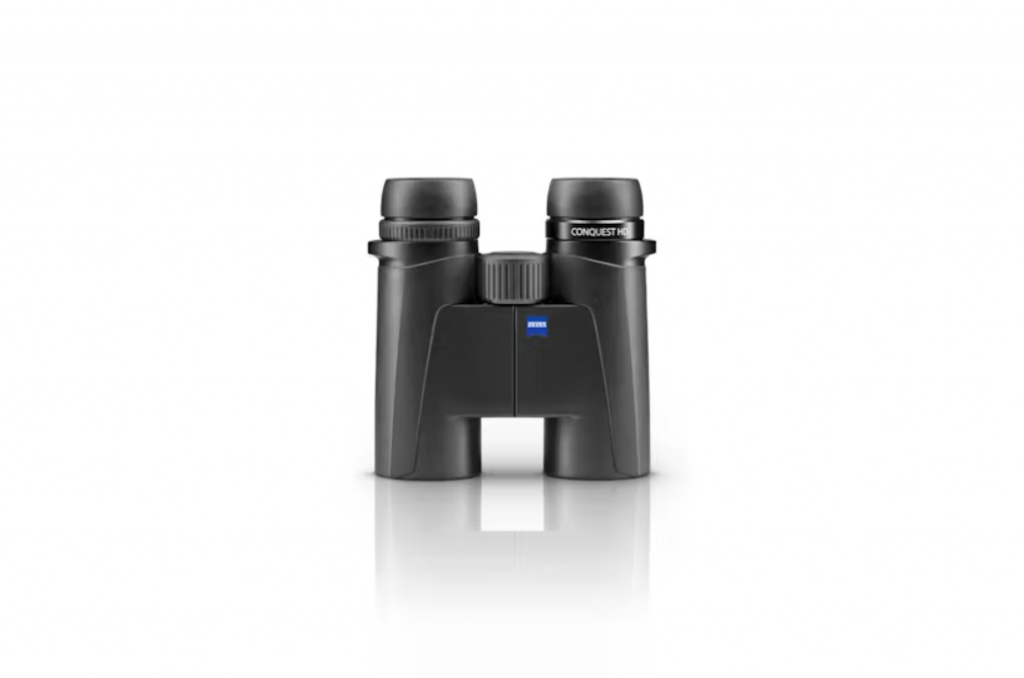

Zeiss Conquest HD 10 x 32
Pris 6.599,00 Kr
| Magnification |
10 × |
| Effective lens diameter |
40 mm |
| Light transmission |
90% |
| Exit pupil diameter |
4.0 mm |
| Twilight factor |
20.0 |
| Field of view at 1,000 m (yds) |
115 m (345 ft) |
| Subjective viewing angle |
62° Ww |
| Close focusing distance |
1.5 m (4.9 ft) |
| Diopter adjustment range |
− 4.0 | + 4.0 dpt |
| Exit pupil distance |
18 mm |
| Pupil distance |
52 – 74 mm |
| Lens type |
UHD |
| Prism system |
Schmidt-Pechan |
| LotuTec | Nitrogen filled |
+ | + |
| Water resistance |
400 mbar |
| Operating temperature |
− 20°C | + 55°C (− 4°F | + 131°F) |
| Length |
144 mm (5.7 “) |
| Width at an interpupillary distance of 65 mm |
114 mm (4.5 “) |
| Weight |
640 g (22.6 oz) |

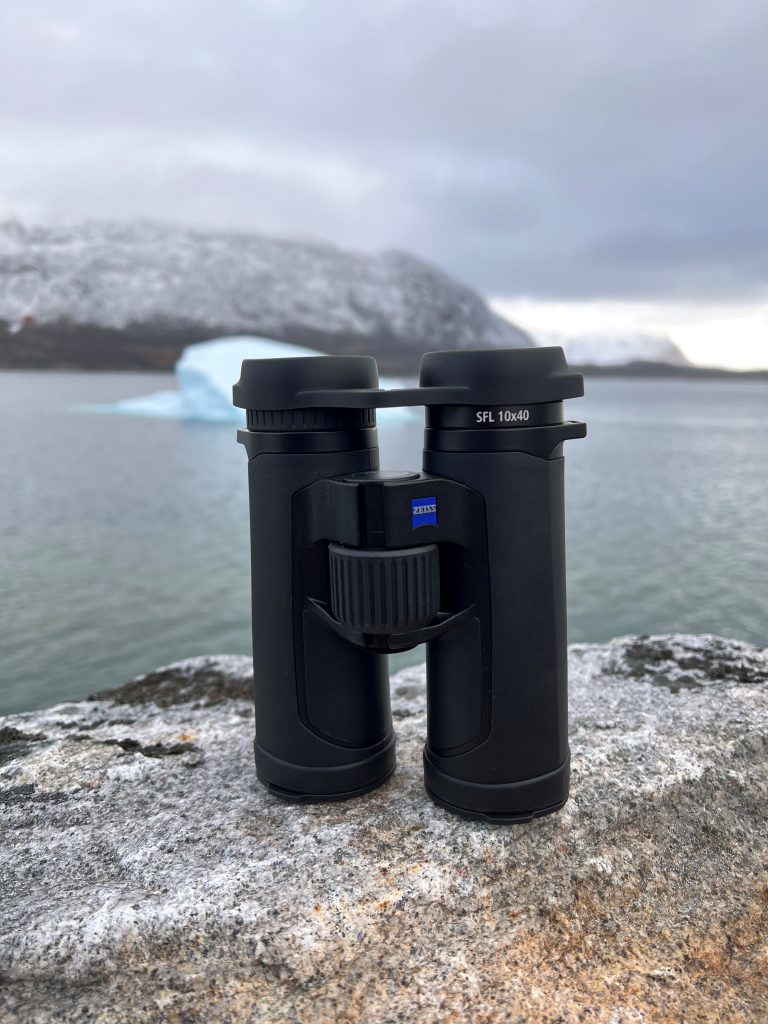

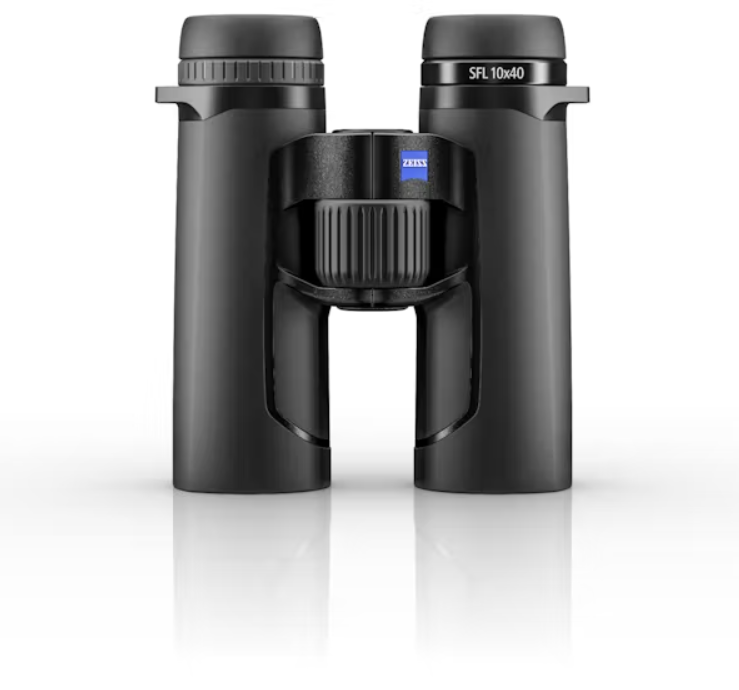

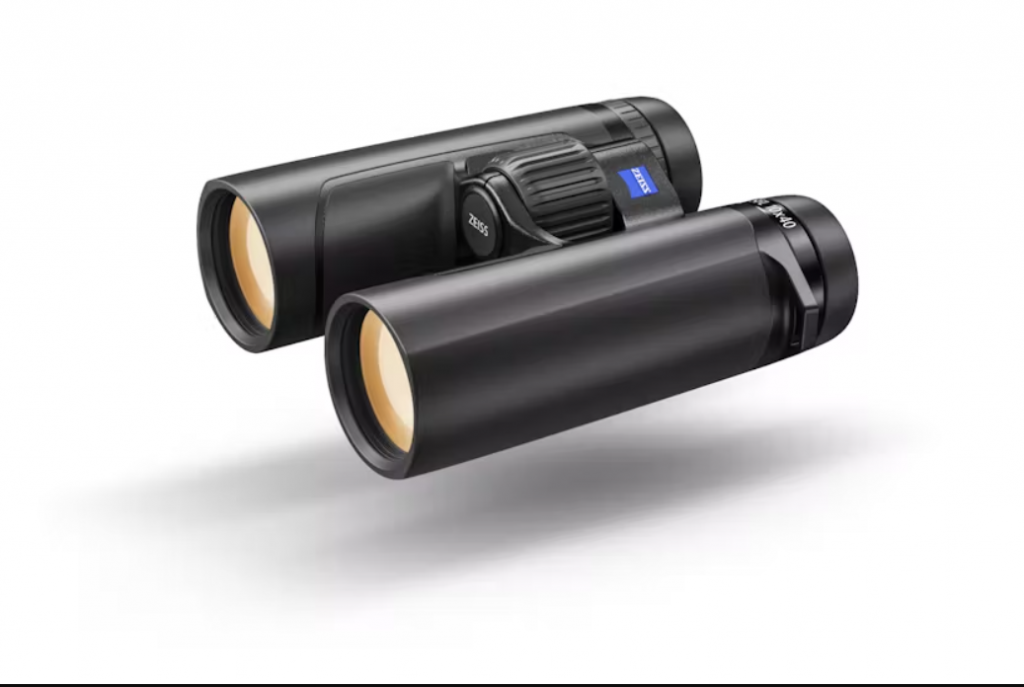

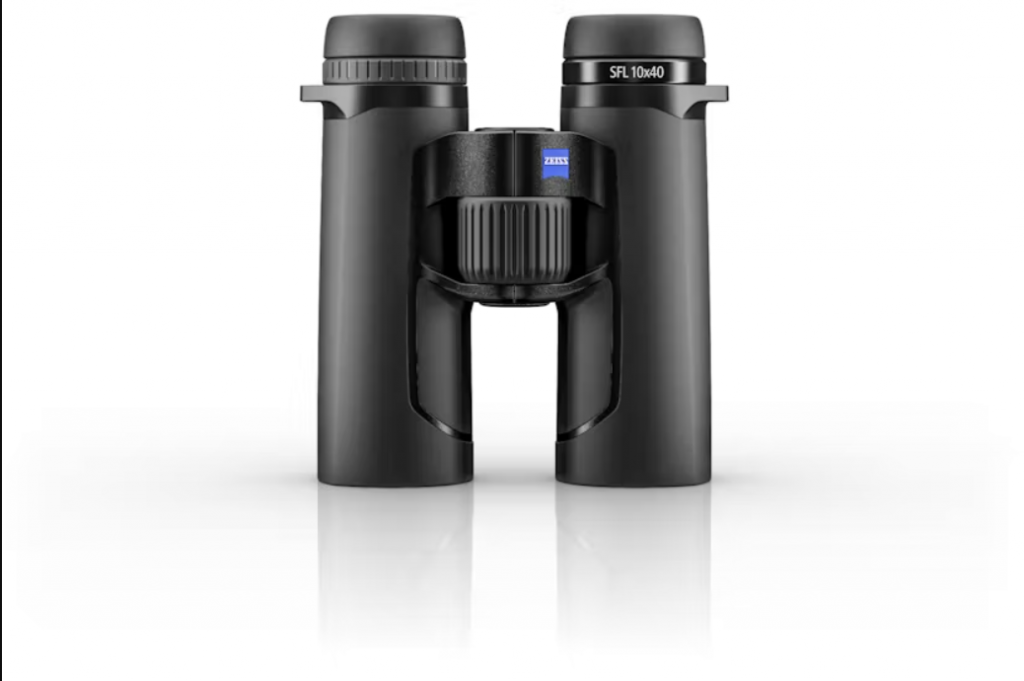

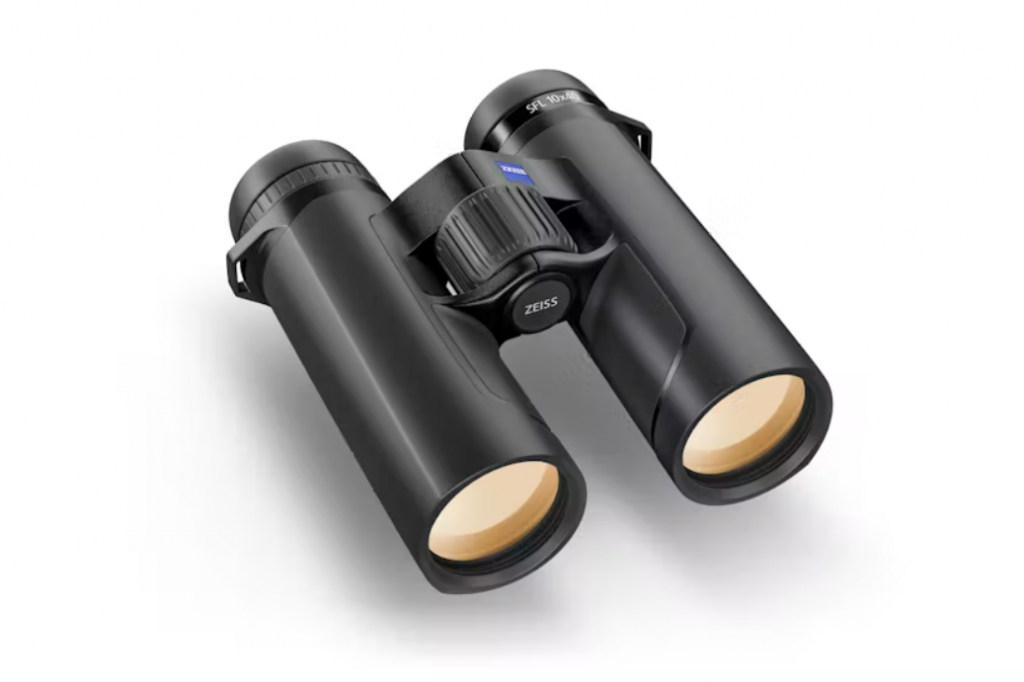

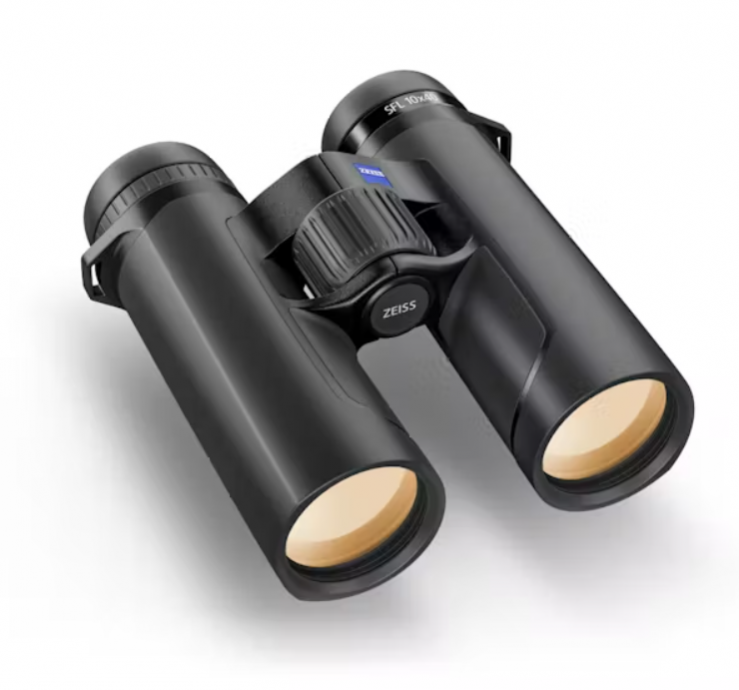

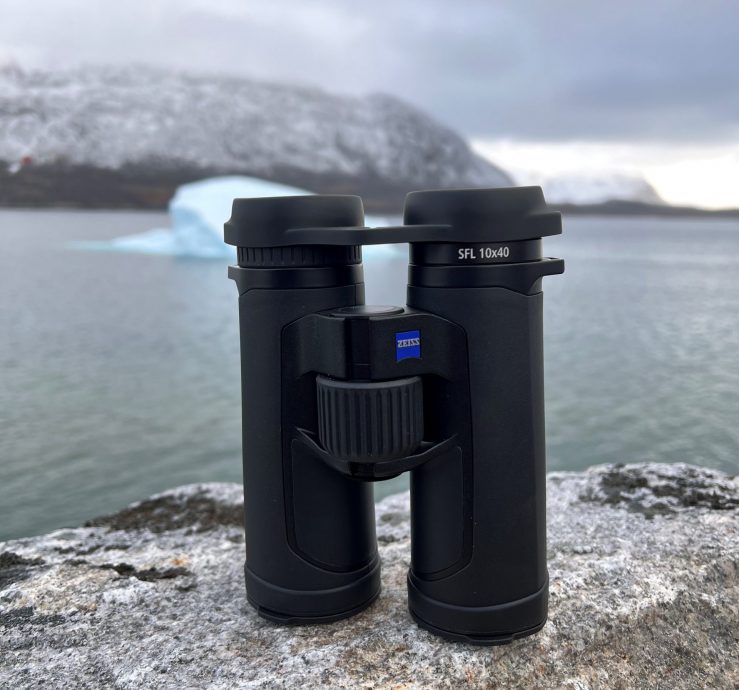

Zeiss SFL 10 x 40
Pris 11.999,00
| Magnification |
10 × |
| Effective lens diameter |
32 mm |
| Light transmission |
90% |
| Exit pupil diameter |
3.2 mm |
| Twilight factor |
17.9 |
| Field of view at 1,000 m (yds) |
130 m (390 ft) |
| Subjective viewing angle |
69° Ww |
| Close focusing distance |
1.95 m (6.4 ft) |
| Diopter adjustment range |
− 4.0 | + 4.0 dpt |
| Exit pupil distance |
19 mm |
| Pupil distance |
54 – 76 mm |
| Lens type |
Ultra-FL |
| Prism system |
Schmidt-Pechan |
| LotuTec | Nitrogen filled |
+ | + |
| Water resistance |
400 mbar |
| Operating temperature |
− 30°C | + 63°C (− 22°F | + 145°F) |
| Length |
150 mm (5.9″) |
| Width at an interpupillary distance of 65 mm |
112 mm (4.4″) |
| Weight |
590 g (20.8 oz) |

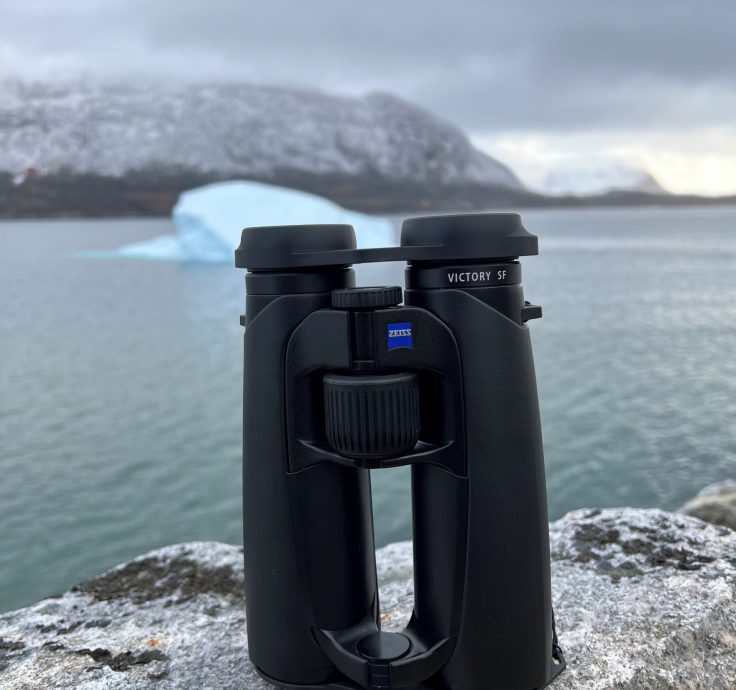

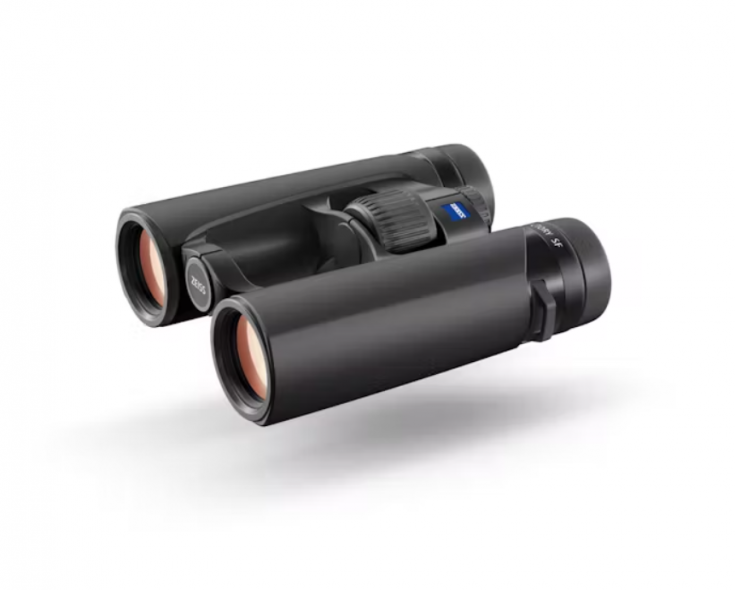

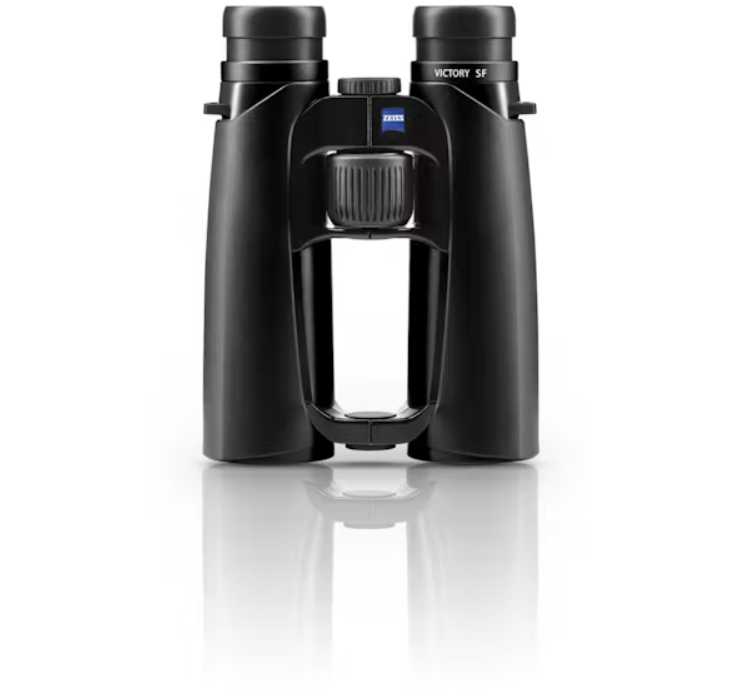

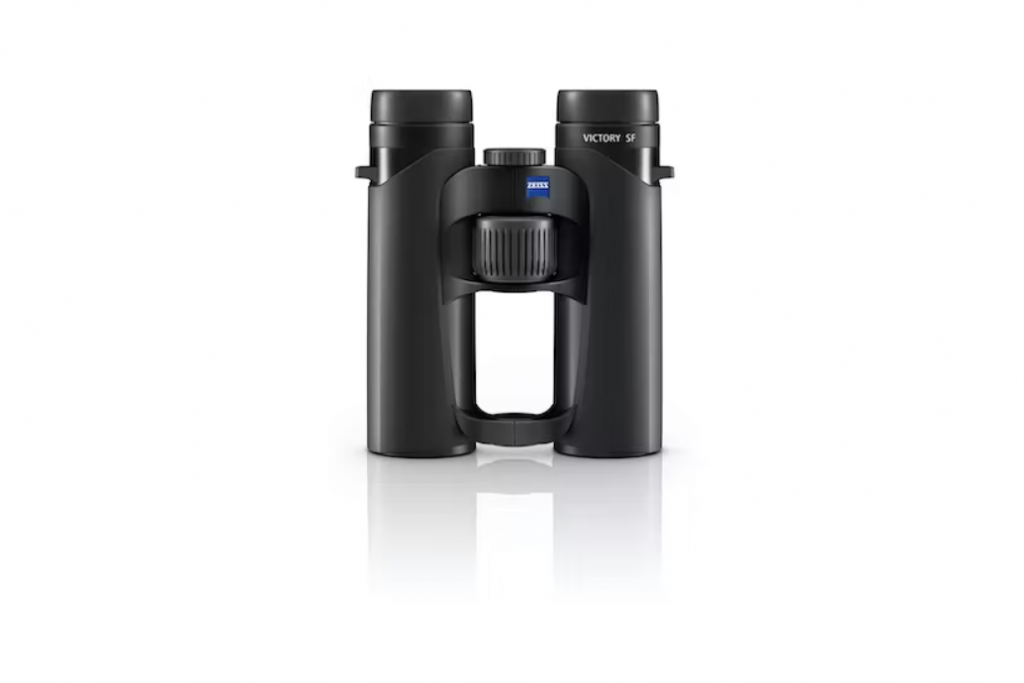

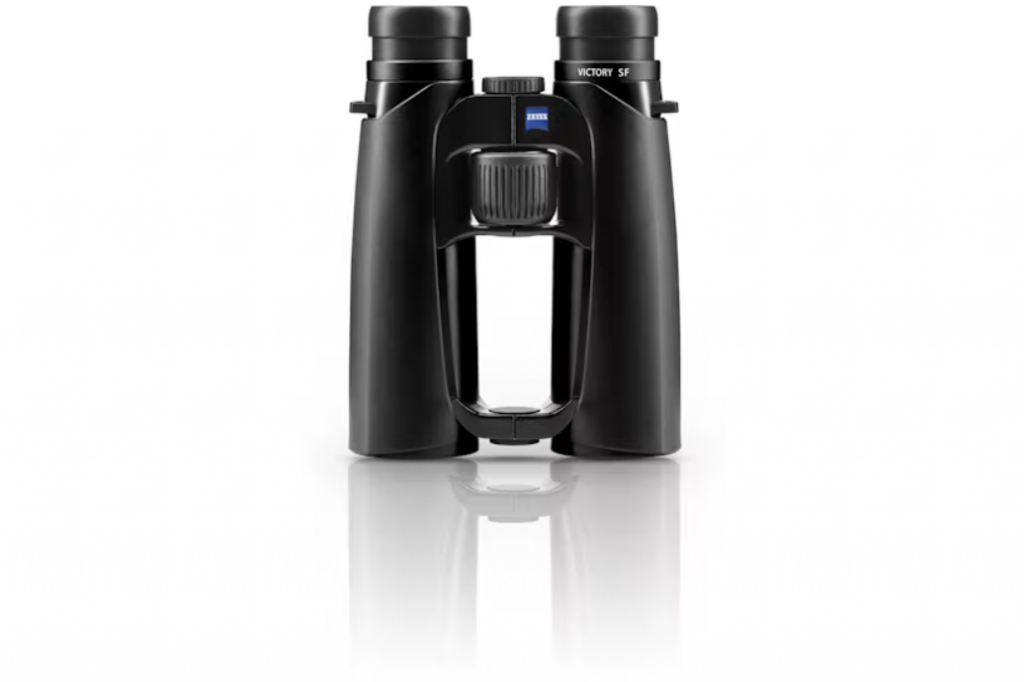

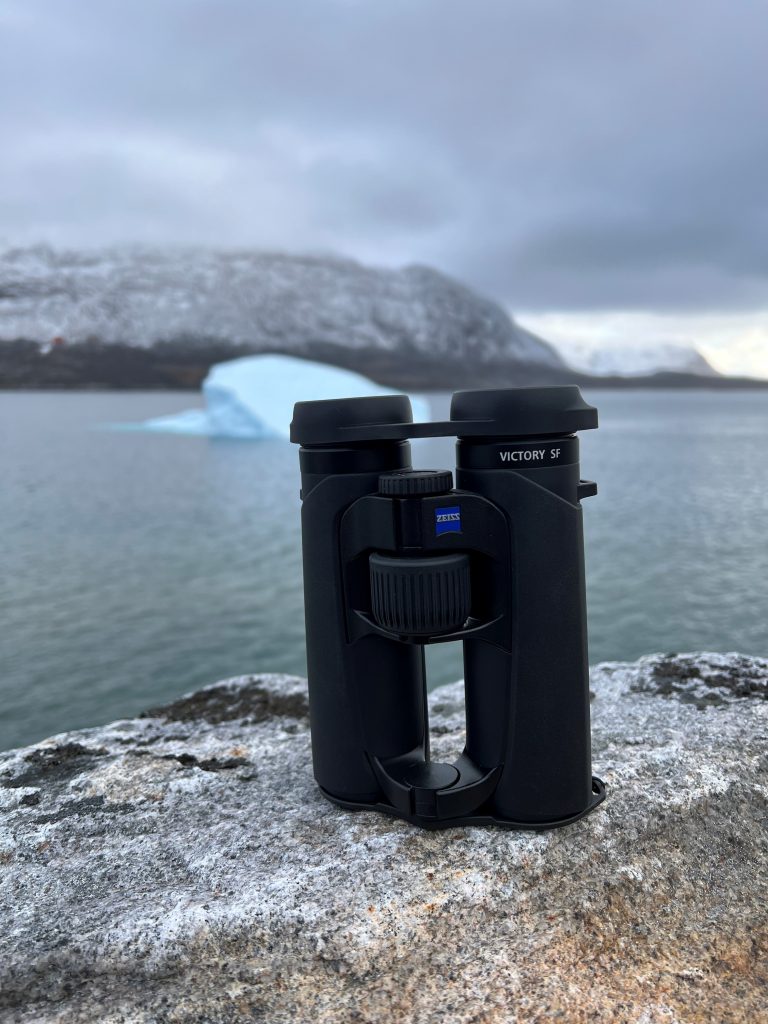

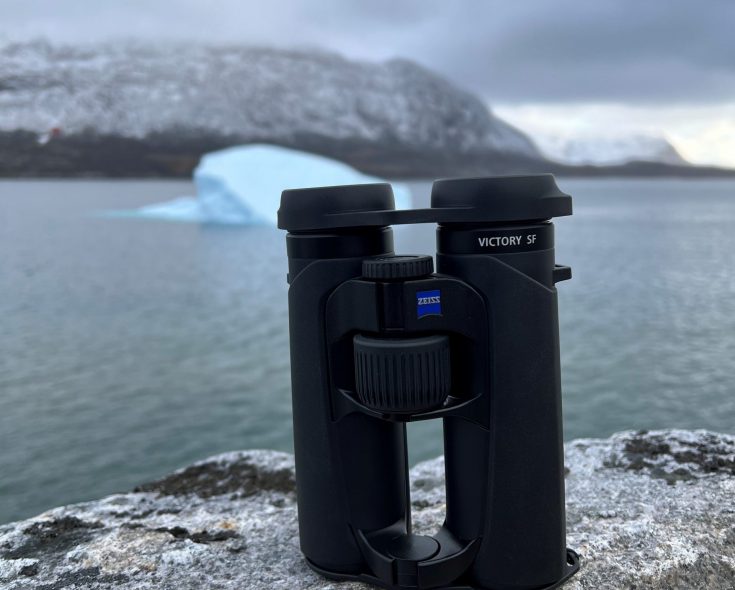

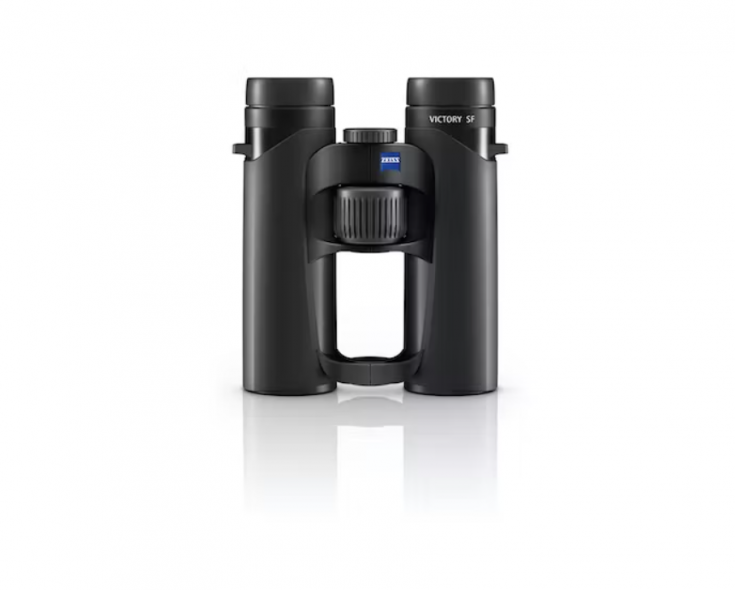

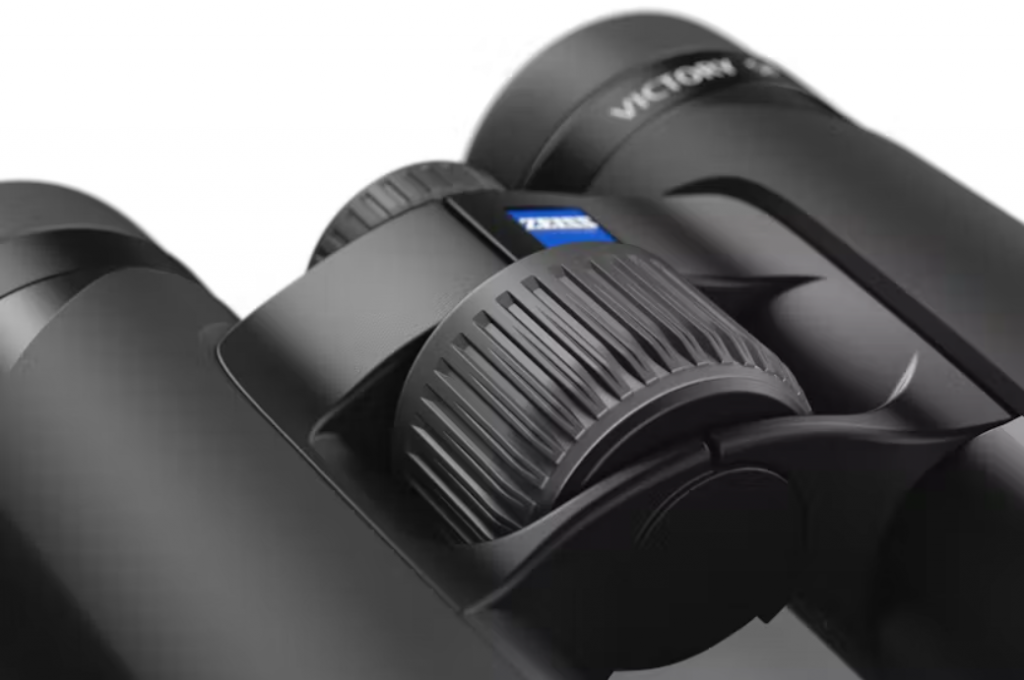

Zeiss Victory SF 10 x 32
Pris 15.999,00 Kr
| Magnification |
10 × |
| Effective lens diameter |
42 mm |
| Light transmission |
92% |
| Exit pupil diameter |
4.2 mm |
| Twilight factor |
20.5 |
| Field of view at 1,000 m (yds) |
120 m (360 ft) |
| Subjective viewing angle |
64° Ww |
| Close focusing distance |
1.5 m (4.9 ft) |
| Diopter adjustment range |
− 4.0 | + 4.0 dpt |
| Exit pupil distance |
18 mm |
| Pupil distance |
55 – 76 mm |
| Lens type |
Ultra-FL |
| Prism system |
Schmidt-Pechan |
| LotuTec | Nitrogen filled |
+ | + |
| Water resistance |
400 mbar |
| Operating temperature |
− 30°C | + 63°C (− 22°F | + 145°F) |
| Length |
173 mm (6.8 “) |
| Width at an interpupillary distance of 65 mm |
125 mm (4.9 “) |
| Weight |
790 g (27.8 oz) |

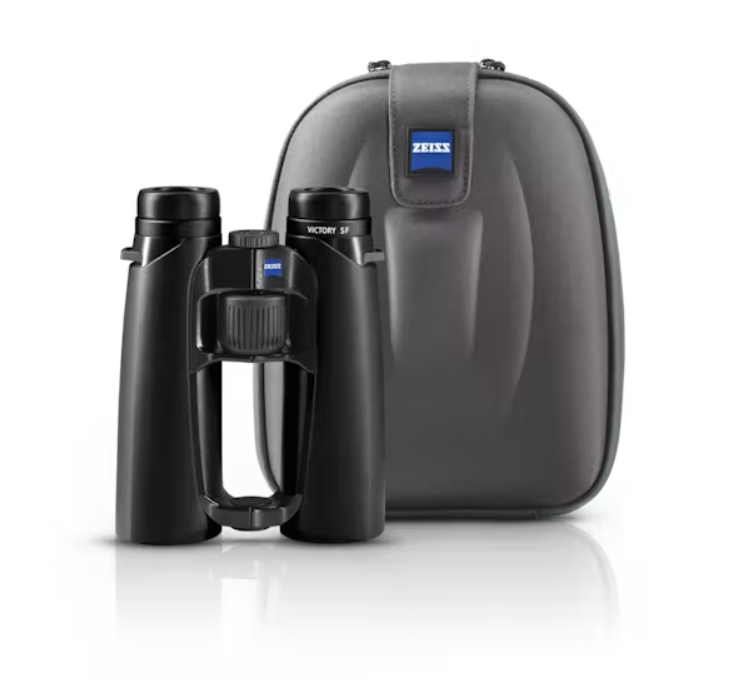

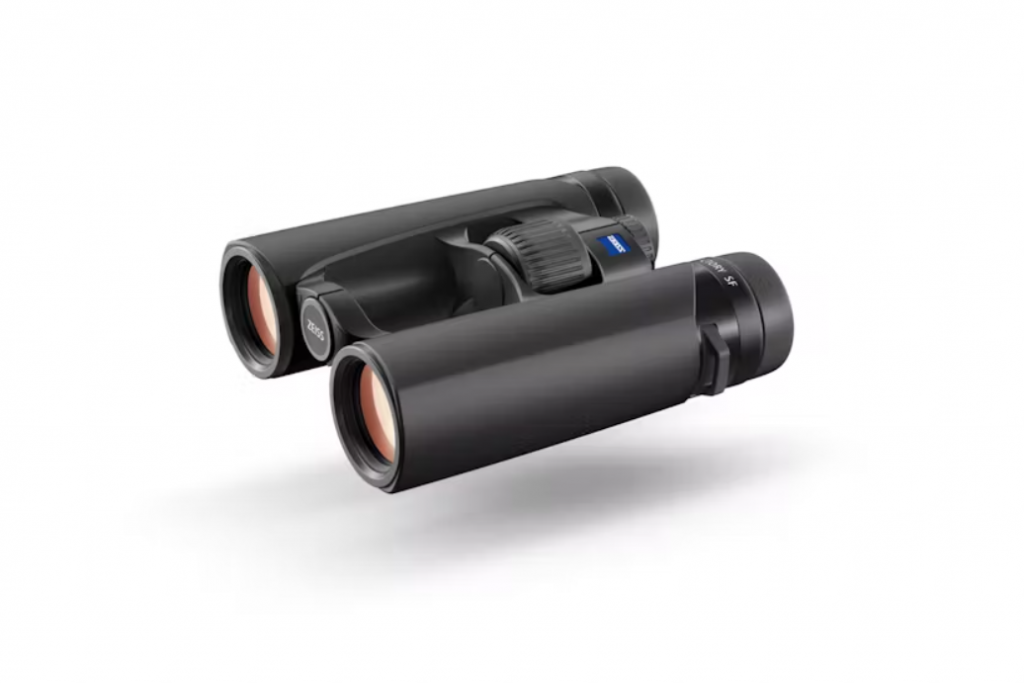

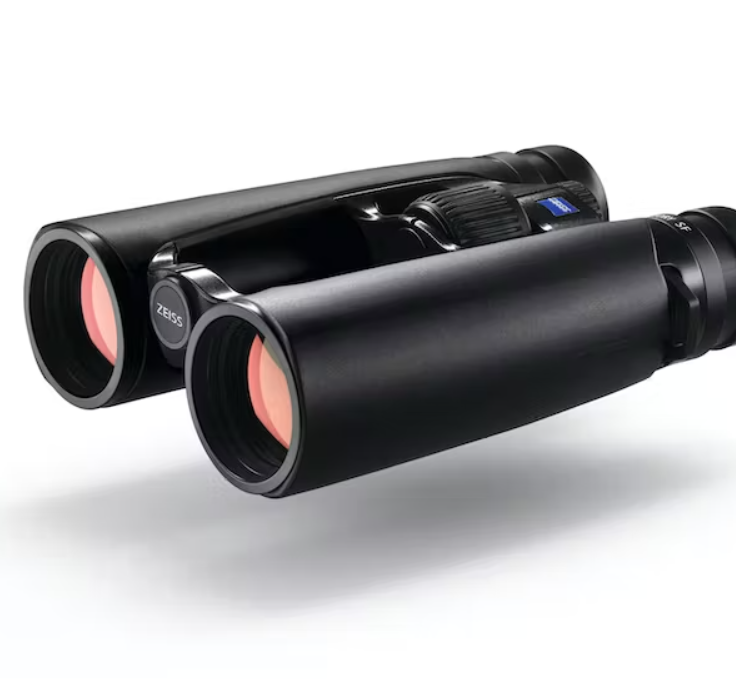

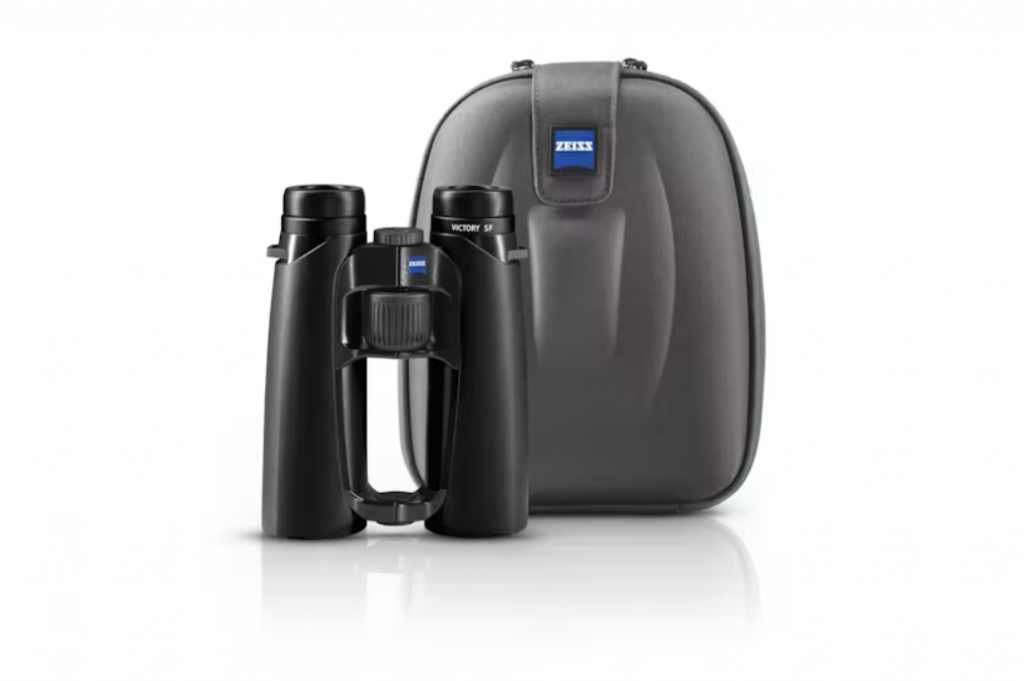

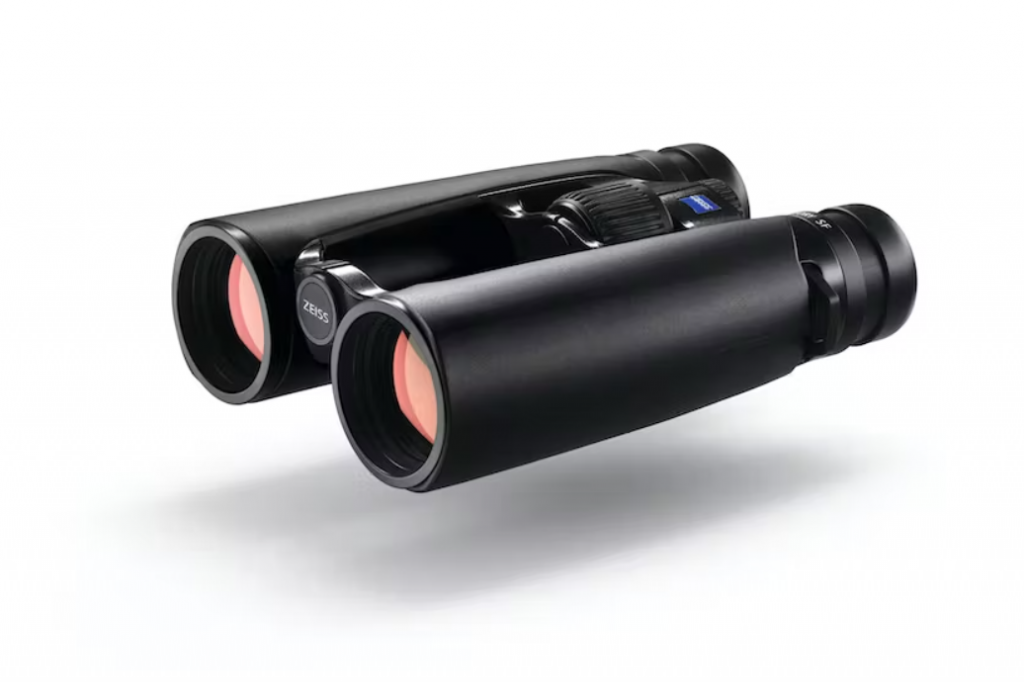

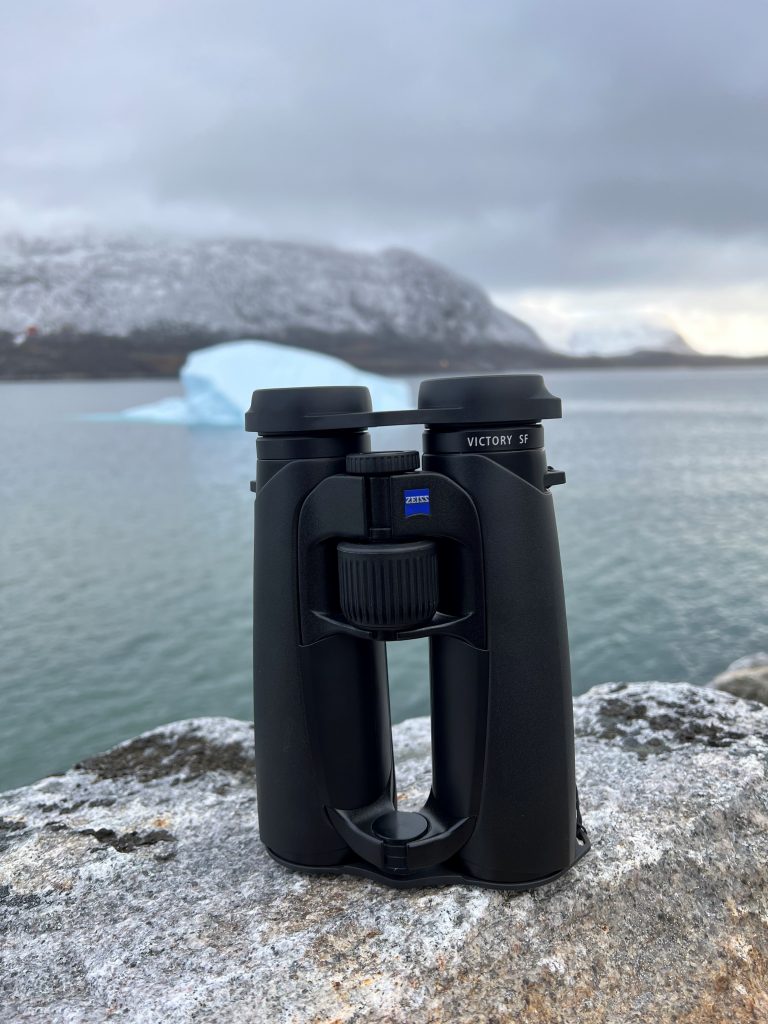

Zeiss Victory SF 10 x 42
Pris 17.899,00 Kr

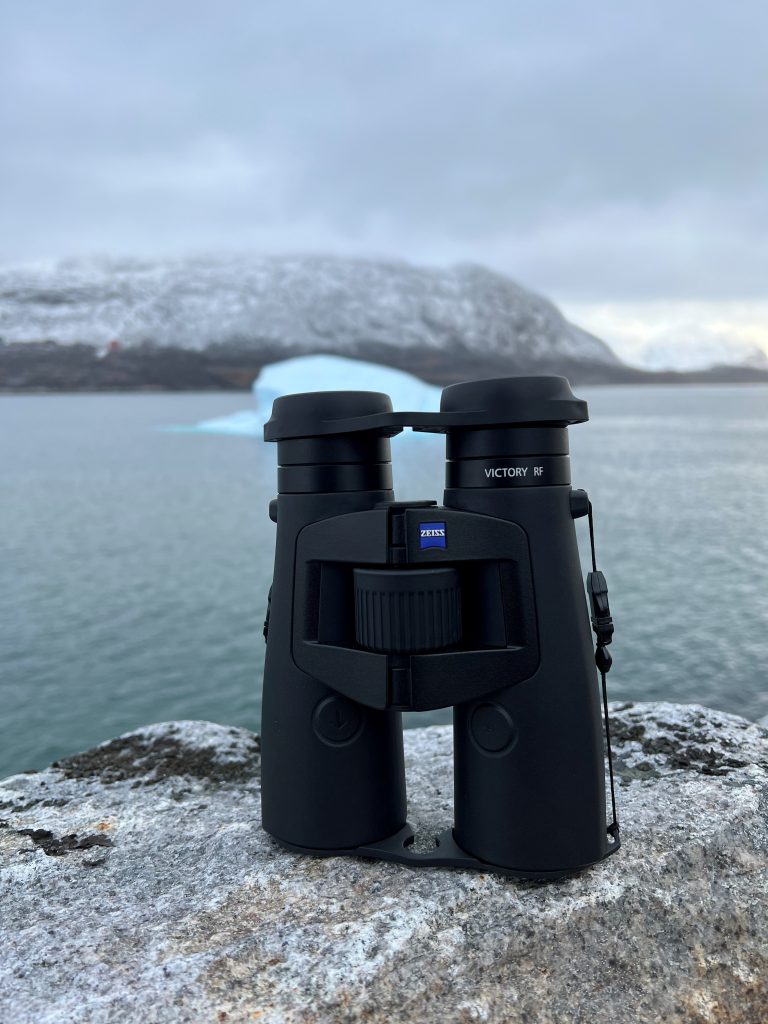

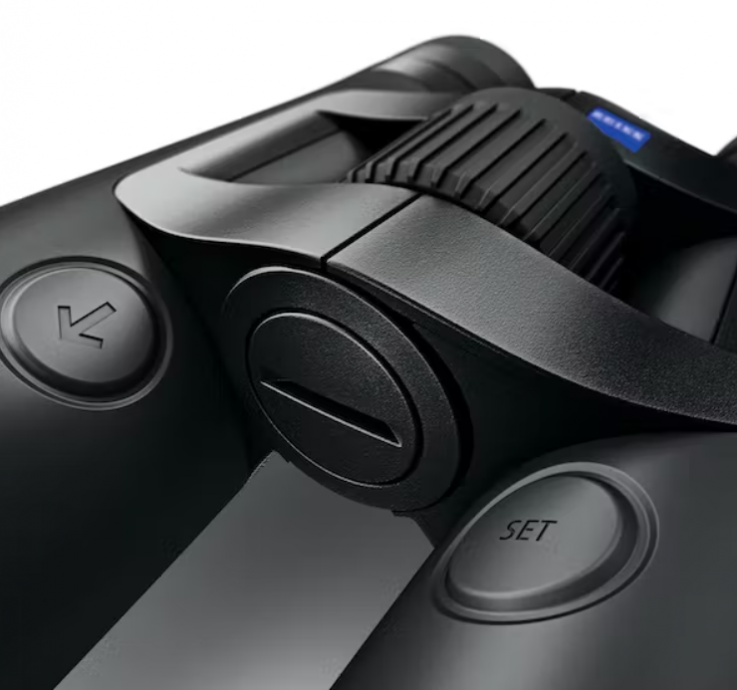

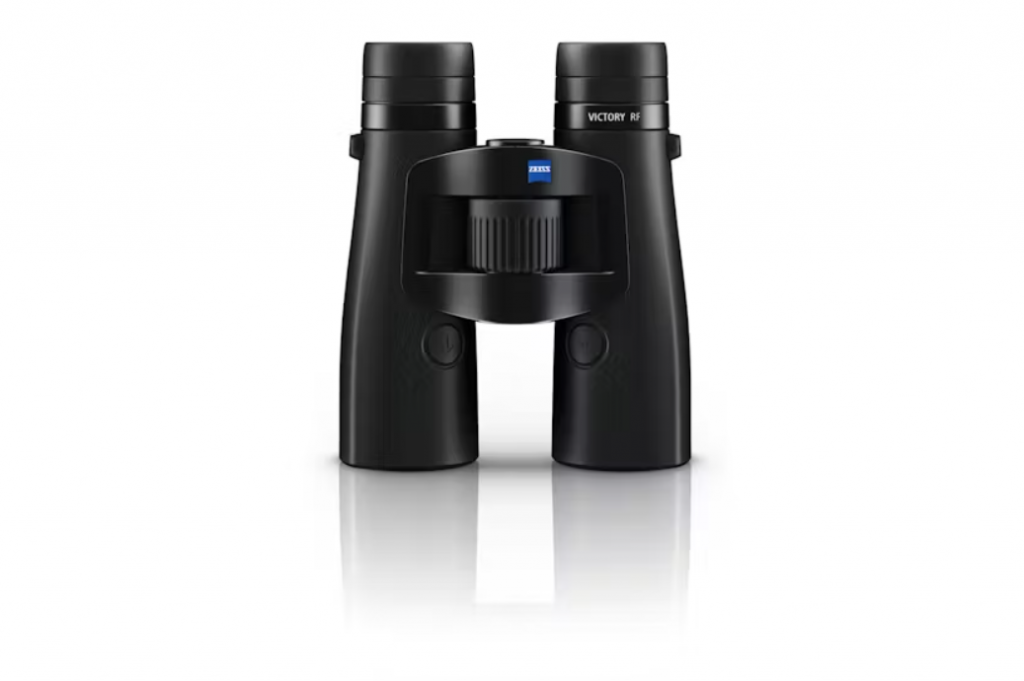

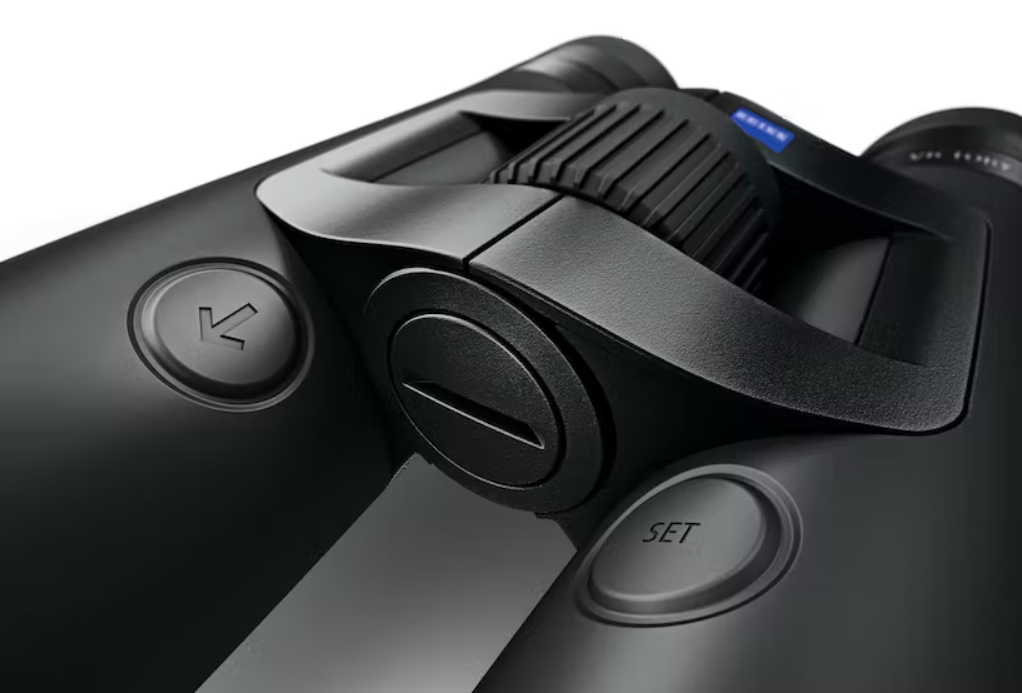

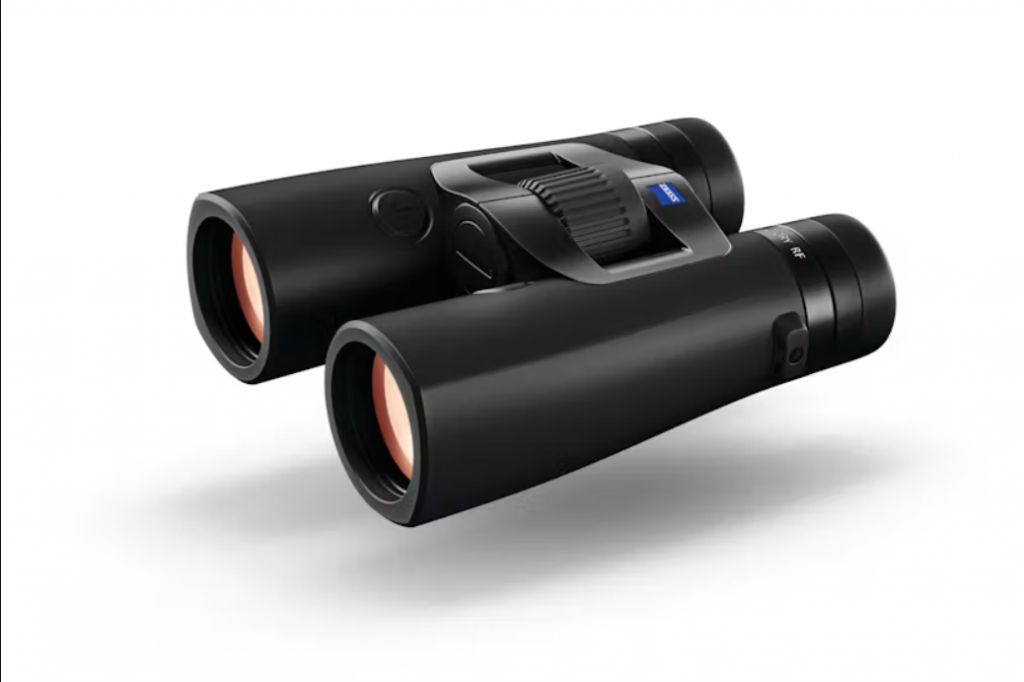

Zeiss Victory RF 10 x 42 Afstandsmåler
| Magnification |
10 × |
| Effective lens diameter |
42 mm |
| Exit pupil diameter |
4.2 mm |
| Twilight factor |
20.5 |
| Field of view at 1,000 m (yds) |
115 m (345 ft) |
| Subjective viewing angle |
63° Ww |
| Close focusing distance |
2.5 m (8.2 ft) |
| Diopter adjustment range |
− 4.0 | + 4.0 dpt |
| Exit pupil distance |
16 mm |
| Pupil distance |
53.5 – 76 mm |
| Lens type |
FL |
| Prism system |
Abbe-König |
| LotuTec | Nitrogen filled |
+ | + |
| Water resistance |
100 mbar |
| Measuring range |
10 – 2,300 m (11 – 2,500 yds) |
| Measuring accuracy |
± 1 – 600 / ± 0.5 % > 600 m (yds) |
| Measuring duration |
< 0.3 Sec |
| Laser wavelength |
905 nm |
| Laser beam divergence |
1.6 × 0.5 nm |
| Battery |
1 × 3V Type CR 2 |
| Battery life at +20°C |
> 2.500 × |
| Operating temperature |
− 30°C | + 63°C (− 22°F | + 145°F) |
| Length |
166 mm (6.5 “) |
| Width at an interpupillary distance of 65 mm |
130 mm (5.1 “) |
| Weight |
960 g (33.9 oz) |

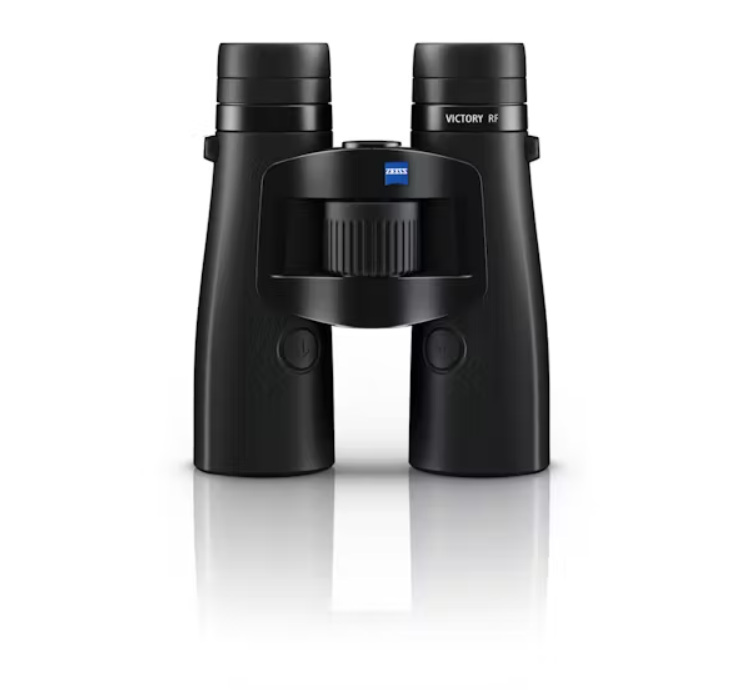

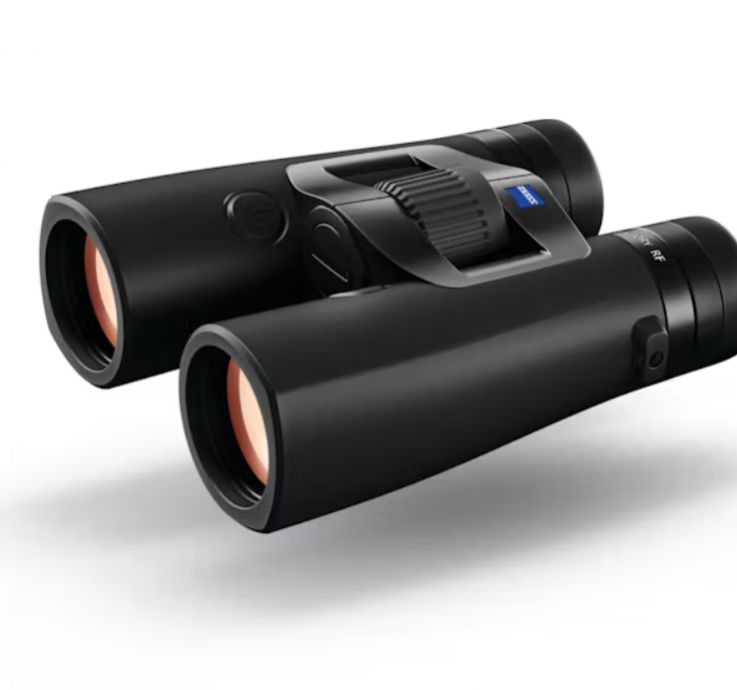

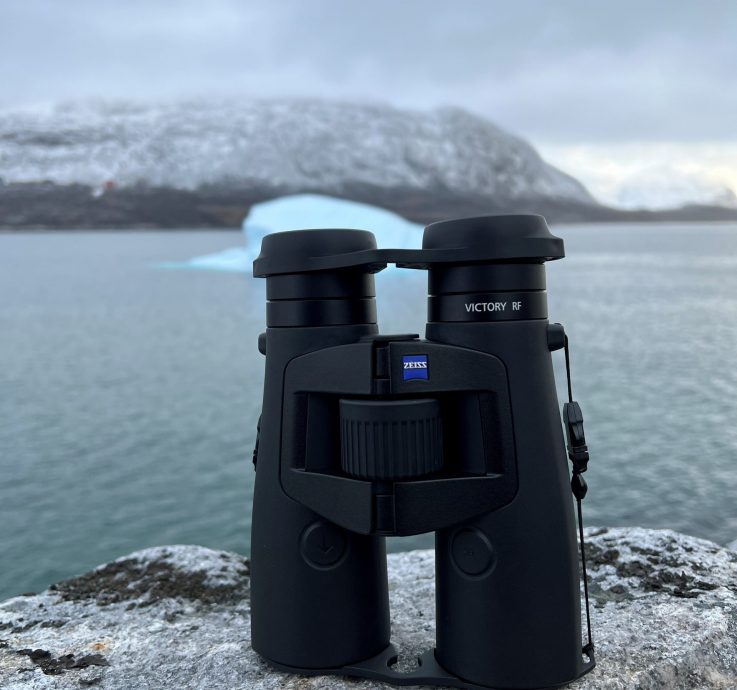

Zeiss Victory RF 10 x 42
Pris 21.699.00 Kr

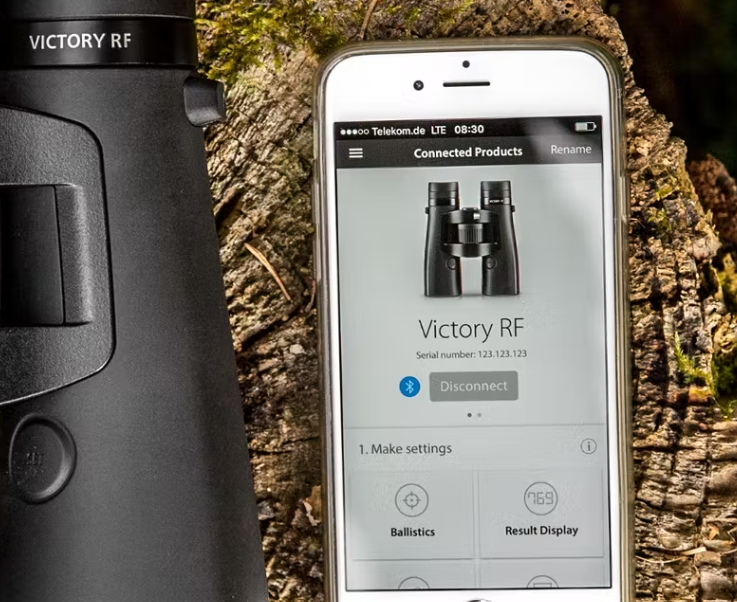

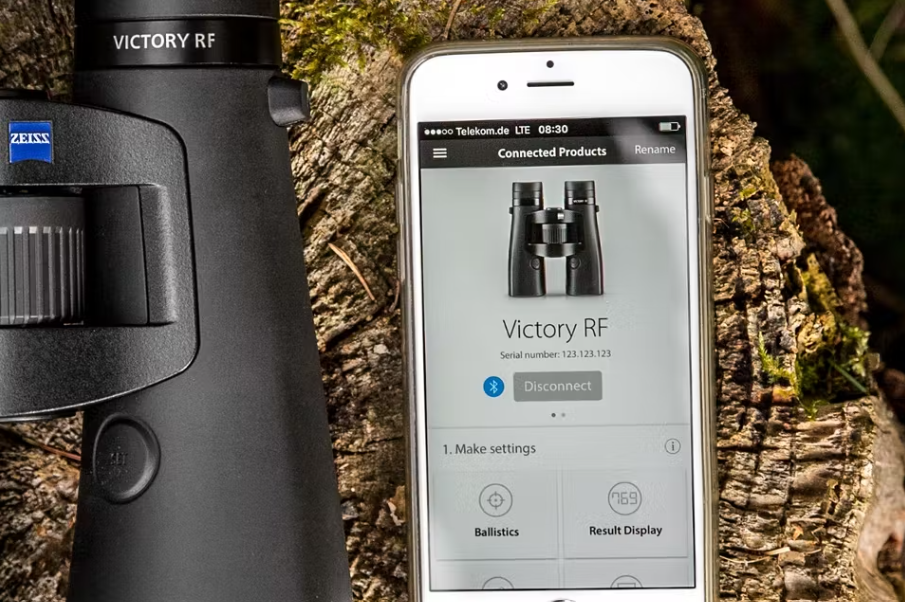

Zeiss Victory RF Hunting App
